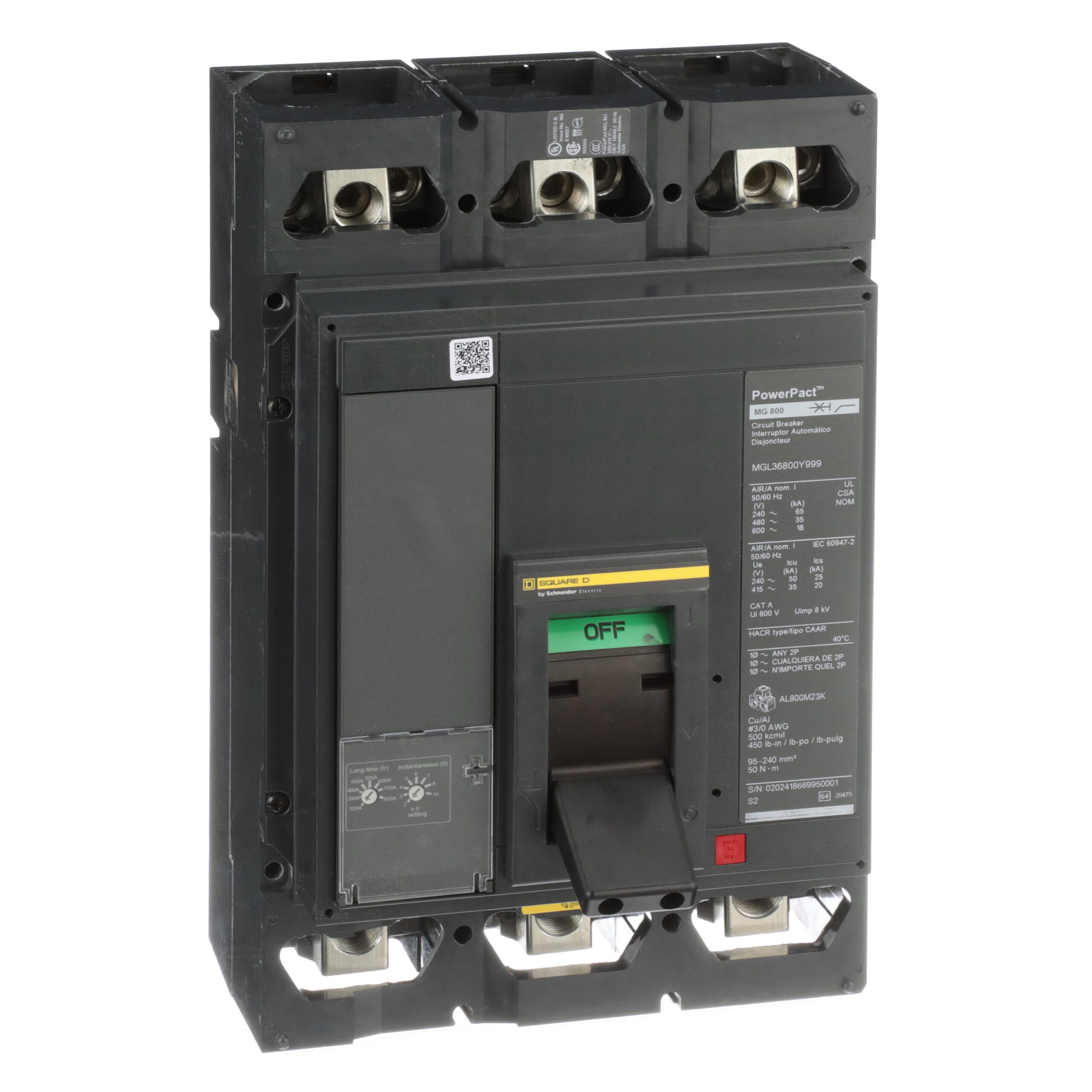

Square D MJL36800 3 Pole Circuit Breaker

MJL36800 Schneider Circuit Breaker 600V 800A 3-Poles

Schneider Electric MoldedPowerPact Chassis Mount Square D MJL36800 is a 3 Pole solid state molded case circuit breaker with a current rating of 800 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 480VAC, 100kAIC at 240VAC. The MJL36800 has a feed-thru connection type and includes long time and instantaneous trip functions.

Contact us today for current availability and pricing.

Description

MJL36800 Schneider Electric Molded Solid State Circuit Breaker 600V 800A Chassis Mount Lever 3-Poles CSA, UL
Amps 800 Amp
Breaker Interrupt Rating 1 100KA @ 240VAC
Breaker Interrupt Rating 2 65KA @ 480VAC
Breaker Interrupt Rating 3 25KA @ 600VAC
Breaker Line Side Term Method Lugs
Category Circuit Breakers, Square D by Schneider Electric
Circuit Breaker Type MCCB
Frame M
Height 12.86
In Stock Yes
Length 8.05
Manufacturer Square D by Schneider Electric
Number of Poles 3 Pole
Product Description 600V, 800Amp, 3-Pole
Trip Type Electronic
UNSPSC 39121616
UPC 785902000000
Volts 600V
Width 8.27
Manufacturer: Square D
Amperage: 800
Voltage: 600
Voltage Type: AC
Poles: 3
Frame Type: MJL
UPC: 785901655398
65kAIC@480V
Feed-Thru
3 Phase
Long Time and Instantaneous Trip Functions
Solid State
Powerpact
Current Limiting
Non-Interchangeable 1.0 Trip
Line & Load Side Lug Terminals

Breaker Type: Solid State
Mounting Type: Chassis Mount
Number of Poles: 3
Illumination: 3
Actuator Type: Lever
VoltageRating: 600V AC
Current Rating: 800A (Amps)
Package: Box
