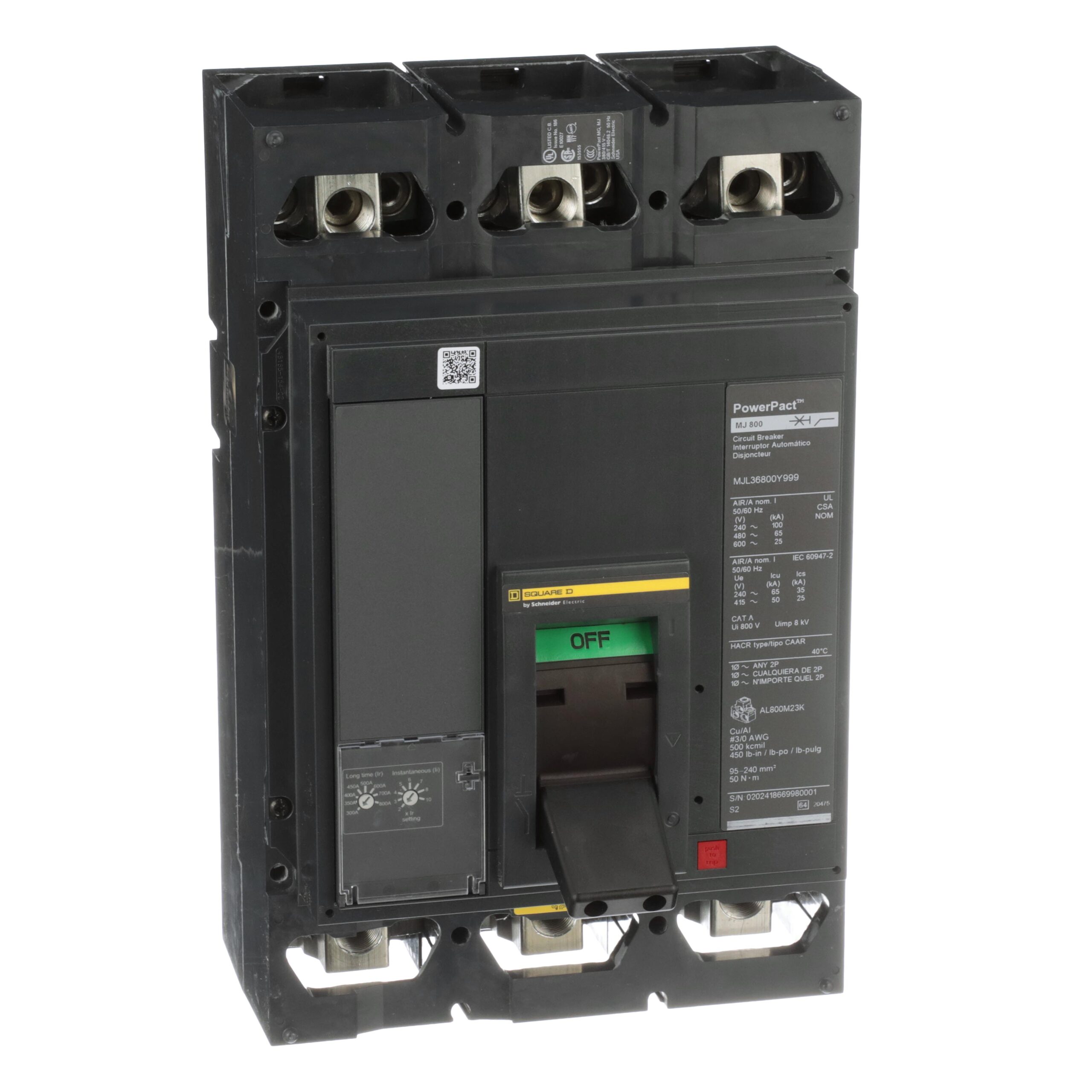

MGL36800E10SA Schneider Electric Circuit breaker, PowerPacT 300A to 800A, 3 pole, 600VAC, 18kA, lugs, adjustable trip Chassis Mount Lever 3-Poles CSA, UL. Delivering configurable protection, the Square D MGL36800E10 is a 3-pole, 800A PowerPacT M-Frame molded case circuit breaker. This unit-mount breaker installs into Square D switchboards and enclosures. It features standard lug connections that accept (3) 3/0 AWG to 500 kcmil conductors. Rated 35 kAIC at 480V, it stands out with an adjustable thermal electronic trip unit. Users can dial the continuous current setting between 300A and 800A for precise system coordination.
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has the adjustable amperage option, allowing trip setting changes between 300A to 800A using a selector switch. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has lugs on both the line and load sides. This PowerPacT M, 300A to 800A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit includes a factory installed 120VAC shunt trip. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specs

Current Rating 300/800A
Frequency Rating 50/60 Hz
IP Rating IP40
Rated Voltage 600V AC
Torque 50-50 N.m
Color Family Black
Length 25 mm
Height 12.86 in.
Depth 8.05 in.
Width 8.27 in.
Breaker Type: Solid State
Mounting Type: Chassis Mount
Number of Poles: 3
Illumination: 3
Actuator Type: Lever
VoltageRating: 600V AC
Current Rating: 800A (Amps)
Standard UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Application Distribution
Mounting Type Plug-In
Color Black
AWG Range 4 x AWG 3/0…3 x 500 kcmil
Package: Box
Schneider Electric PowerPacT Molded Case Circuit Breakers MGL36800E10SA
