Description

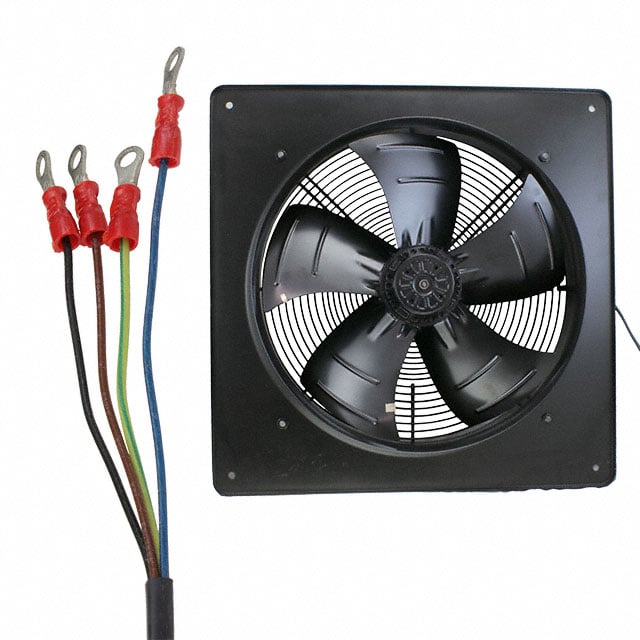

W4D400-DP12-41 Ebm-Papst AC Fan 380 ~ 480VAC 145W, 250W 1430/1700 RPM, Ball, 0.522 in H2O (130.0 Pa) 1528.5 CFM (42.80m³/min) Bearing, Dual Voltage, Thermal Overload Protector (TOP), Tubeaxial, 3 Phase 4 Wire Leads with Ring Terminals IP44 CE, CSA, UL
Manufacturer: Ebm-papst
Part Number: W4D400-DP12-41
Series: W4D400
Rated Voltage: 380 ~ 480VAC
Revolutions: 1430/1700 RPM
Power: 145W, 250W
Size / Dimension: Square 540mmL x 540mmH
Width: 152.0mm
Bearing Type: Ball
Fan Type: Tubeaxial, 3 Phase
Operating Temperature: 13 ~ 131°F (25 ~ 55°C)
Ingress Protection: IP44
Termination: 4 Wire Leads with Ring Terminals
Datasheet: W4D400-DP12-41.pdf
