Description

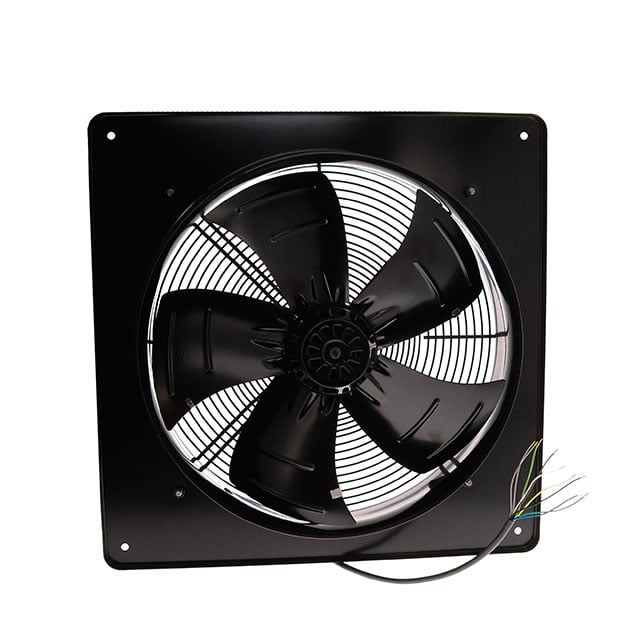

W4D400-DP12-40 Ebm-Papst AC Fan 230VAC 225W 1640 RPM, Ball, 0.502 in H2O (125.0 Pa) 1528.5 CFM (42.80m³/min) Bearing, Dual Voltage, Thermal Overload Protector (TOP), Tubeaxial, 3 Phase 9 Wire Leads with Splice Terminals IP44 CCC, CE, CSA, UL
Manufacturer: Ebm-papst
Part Number: W4D400-DP12-40
Series: W4D400
Rated Voltage: 230VAC
Revolutions: 1640 RPM
Power: 225W
Size / Dimension: Square 540mmL x 540mmH
Width: 152.0mm
Bearing Type: Ball
Fan Type: Tubeaxial, 3 Phase
Operating Temperature: 40 ~ 140°F (40 ~ 60°C)
Ingress Protection: IP44
Termination: 9 Wire Leads with Splice Terminals
Datasheet: Catalog_Axialfans_2007_EN.pdf
