Description

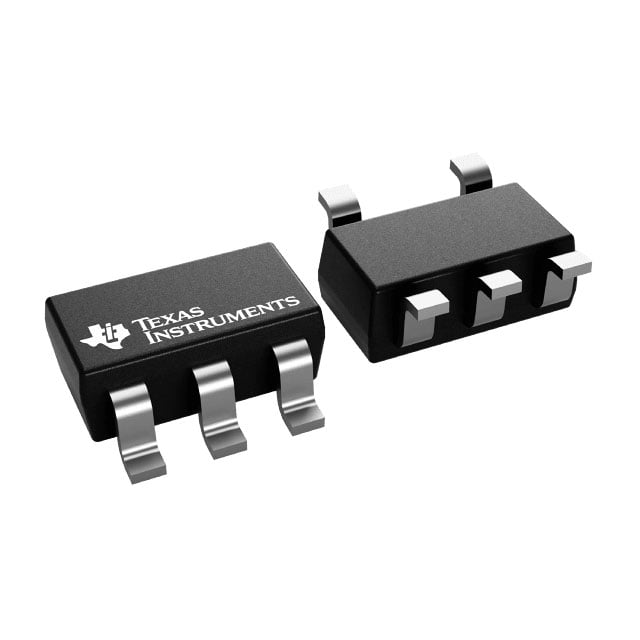

TLV7031DBVR IC Linear Comparator 1-Channel Rail-to-Rail 73dB CMRR, 77dB PSRR 3µs (Typ) Surface Mount SOT-23-5
Number of Element: 1
Supply Voltage: 1.6V ~ 6.5V, ±0.8V ~ 3.25V
Current Input Bias (Max): 2pA
Voltage Input Offset (Max): 8mV @ 5V
Current Output (Typ): 33mA @ 5V
Current – Quiescent (Max): 900nA
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: SC-74A, SOT-753
