Description

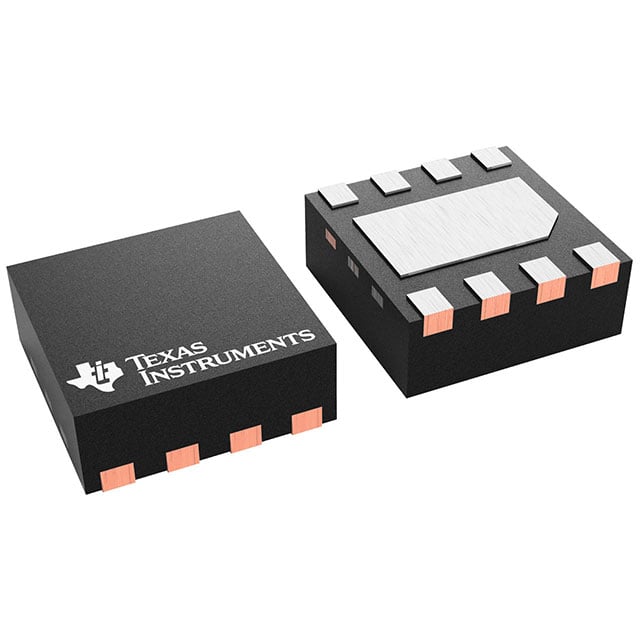

TLV7022DSGR IC Linear Comparator 2-Channel Open-Drain, Rail-to-Rail 73dB CMRR, 77dB PSRR 310ns (Typ) Surface Mount 8-WSON (2×2)
Number of Element: 2
Supply Voltage: 1.6V ~ 5.5V
Current Input Bias (Max): 2pA @ 5V
Voltage Input Offset (Max): 8mV @ 5V
Current Output (Typ): 33mA @ 5V
Current – Quiescent (Max): 9µA
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 8-WFDFN Exposed Pad
