Description

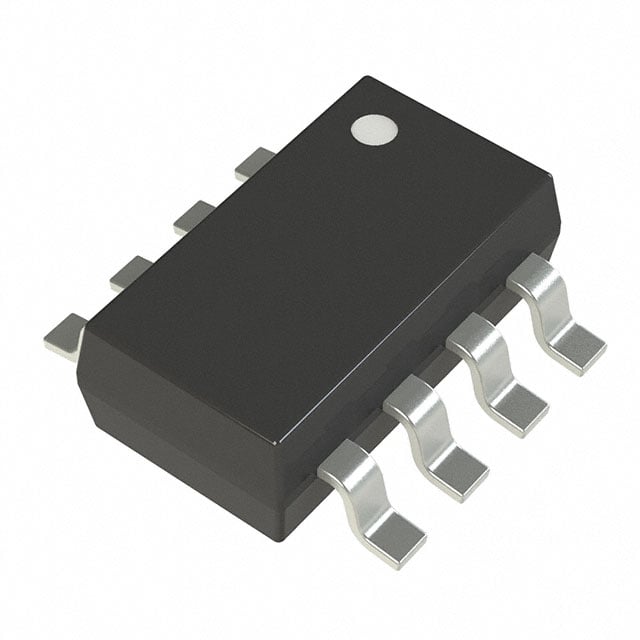

TLV3502AQDCNRQ1 IC Linear Comparator 2-Channel CMOS, Push-Pull, Rail-to-Rail, TTL 70dB CMRR, 80dB PSRR 10ns Automotive AECQ100 Surface Mount SOT-23-8
Number of Element: 2
Supply Voltage: 2.7V ~ 5.5V, ±1.35V ~ 2.75V
Current Input Bias (Max): 10pA @ 5.5V
Voltage Input Offset (Max): 6.5mV @ 5.5V
Current Output (Typ):
Current – Quiescent (Max): 5mA
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: SOT-23-8
