Description

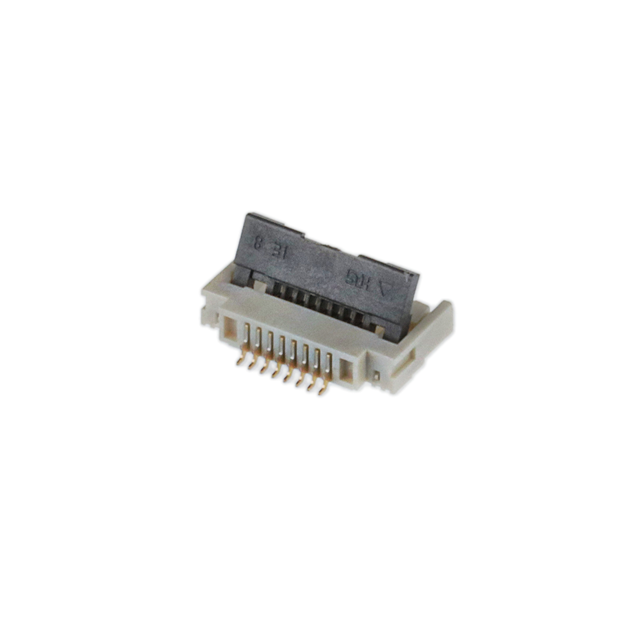

TF31-8S-0.5SH(800) Hirose Electric Co Ltd TF31 FFC, FPC Connector 8 Position, 0.020″ (0.50mm) Pitch, 50V Zero Insertion Force (ZIF) Surface Mount, Right Angle Solder Liquid Crystal Polymer (LCP)
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Bottom
Number of Position: 8
Pitch: 0.020″ (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.069″ (1.75mm)
Cable End Type: Tabbed
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 105°C
Housing Material: Liquid Crystal Polymer (LCP)
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: Hirose
Manufacturer Part #: TF31-8S-0.5SH(800)
