Description

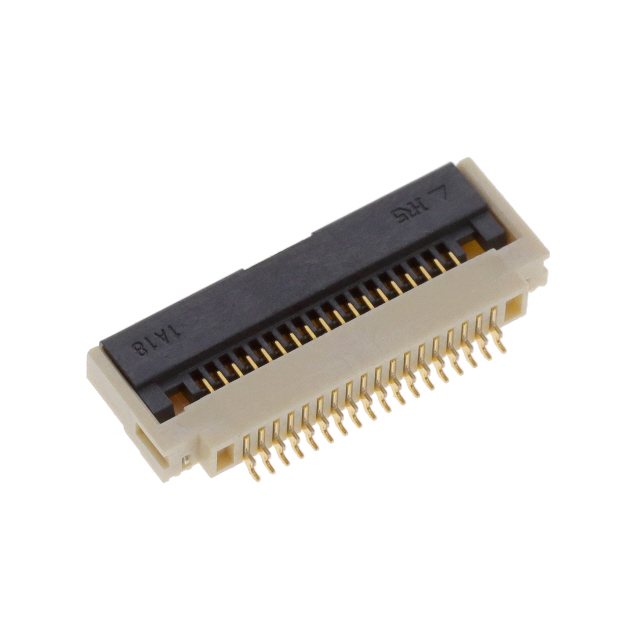

TF31-18S-0.5SH(800) Hirose Electric Co Ltd TF31 FFC, FPC Connector 18 Position, 0.020″ (0.50mm) Pitch, 50V Zero Insertion Force (ZIF) Surface Mount, Right Angle Solder Liquid Crystal Polymer (LCP)
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Bottom
Number of Position: 18
Pitch: 0.020″ (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.069″ (1.75mm)
Cable End Type: Tabbed
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Housing Material: Liquid Crystal Polymer (LCP)
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: Hirose
Manufacturer Part #: TF31-18S-0.5SH(800)
