Description

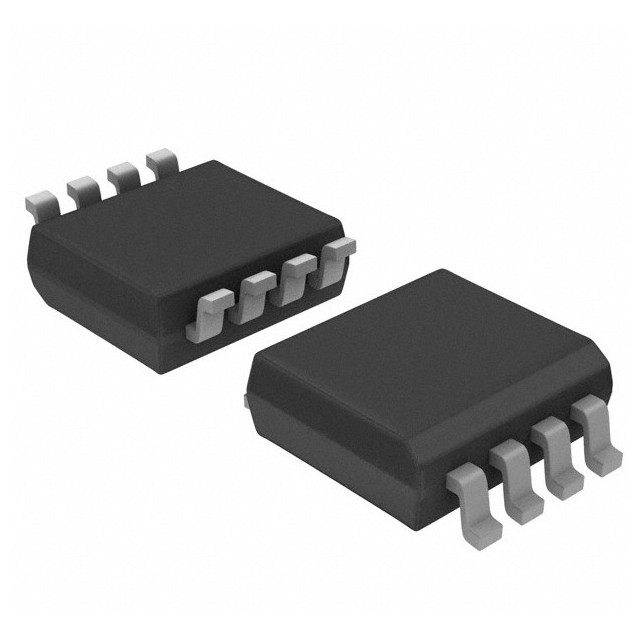

TC75W56FK,LF IC Linear Comparator 2-Channel Push-Pull 680ns Surface Mount 8-SSOP
Number of Element: 2
Supply Voltage: 1.8V ~ 7V, ±0.9V ~ 3.5V
Current Input Bias (Max): 1pA @ 5V
Voltage Input Offset (Max): 7mV @ 5V
Current Output (Typ): 25mA
Current – Quiescent (Max): 40µA
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Package / Case: 8-VFSOP (0.091″, 2.30mm Width)
