Description

TC75S56F,LF IC Linear Comparator 1-Channel Push-Pull 680ns Surface Mount SMV
Number of Element: 1
Supply Voltage: 1.8V ~ 7V, ±0.9V ~ 3.5V
Current Input Bias (Max): 1pA @ 5V
Voltage Input Offset (Max): 7mV @ 5V
Current Output (Typ): 25mA
Current – Quiescent (Max): 22µA
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount

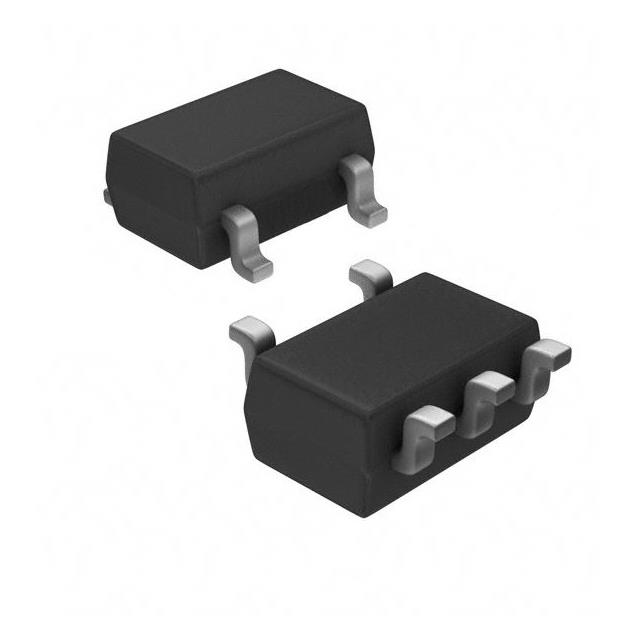

Package / Case: SC-74A, SOT-753
