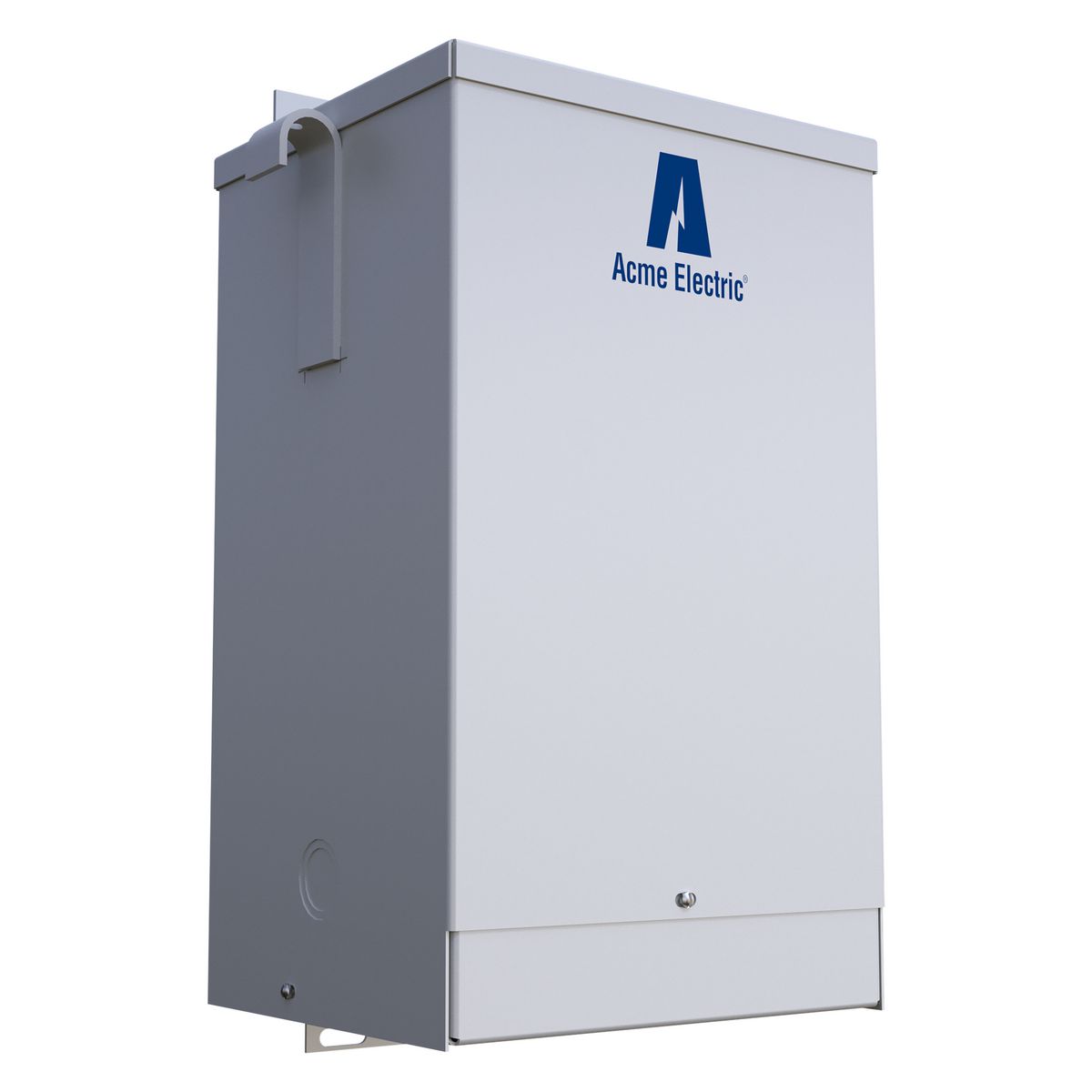

T113075 Acme buck-boost transformer, encapsulated core, 2 kVA, 1-phase, 120/240 VAC, 16/32 VAC secondary, 50/60 Hz, NEMA 3R, wall mount. Buck boost transformers connect to incoming AC voltage to step the voltage up or down in single- or three-phase applications. These transformers are most commonly used to increase a 208V supply to accommodate a motor that needs to run on 230V. Specific applications include induction motors, air conditioning, lighting, and heating systems.

CATALOG DESCRIPTION: BUCK-BOOST TRANSFORMER – SINGLE PHASE, 120 X 240 – 16/32V, 2KVA
Category: Buck & Boost Dry Type Transformers 600v Or Less
Full Technical Description: 5.5 Inch W X 5.13 Inch D X 13 Inch H Size; 60 Hz Frequency Rating; 3-Jan Phase(S); Outdoor Application; NEMA 3R Enclosure; Totally Enclosed Construction; 2 kVA Power Rating; 120 X 240 V Primary Voltage; 16/32 V Secondary Voltage; Approval UL, CSA; Output Current 125 Ampere (16 V), 62.5 Ampere (32 V); SERIES T11 Model
Made in USA: Yes
Manufacturer: Hubbell Acme Electric
Application For Low Voltage Lighting Or Control Circuitry
ARRA Compliant C
Boost Voltage 30 KVA/125 AMP: 225 V Line And 240 V Load
Buy American Compliant C
Catalog Number T113075
Connection Wire Lead Screw Terminal
Connection Type Wire Lead
Country of Origin MX
Currency USD
Dimensions 13 in H x 5.5 in W x 5.13 in D
Enclosure NEMA 3R Steel
Enclosure Type NEMA 3R
Gross Weight Per Pack 38.0000 lb
Gross Weight per Pack Metric 16.33
Gross Weight UOM Metric kg
Harmonization Tariff Schedule Code 8504320000
Height 13.00 in
Height [Metric] 33.0200 cm
Housing Material Steel
Insulation Class H/180 deg C
Insulation Class 180 DEG C Class H
Length 5.13 in
Length [Metric] 13.0302 cm
Maximum Amperage Rating 125/62.5 A
Maximum Output Current 125@16V/62.5@32V A
Mounting Wall
Mounting Type Wall
Number Of Phases 1
Returnable Y
Standard UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE
Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506UL File No. E79947V1UL Control File No. 50B8UL Insulation File No. X3221CSA CertifiedOSHA ApprovedANSI SpecifiedIEEE Certified
Temperature Rating 115 °C
Type Encapsulated
UNSPSC 39121025
UPC 11 04750308624
UPC 12 047503086247
Width 5.50 in
Width [Metric] 13.9700 cm
Stock Status NONSTOCK
Brand Acme Electric
Manufacturer Acme Electric
Frequency Rating 60 Hz
Phase 1
Power Rating 2 kVA
Primary Voltage 120/240 VAC
Secondary Voltage 16/32 VAC

Datasheet: T181059
