Description

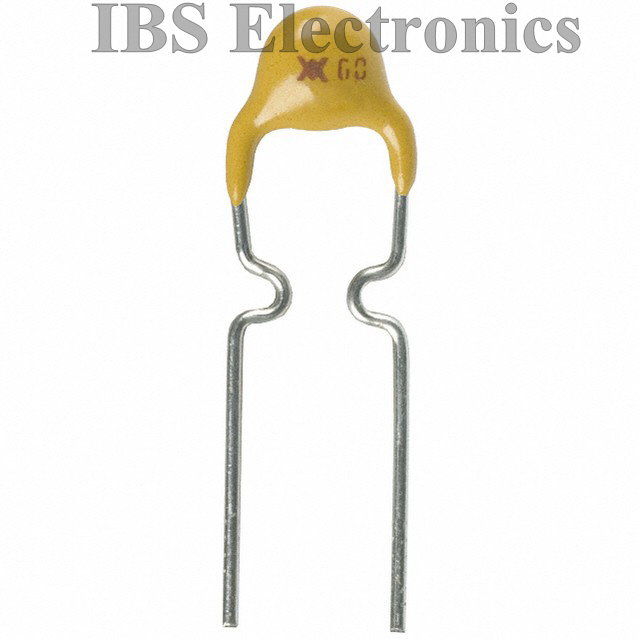

Raychem RXE010 Resettable Fuses – PPTC Radial Lead .1A 60V 40A Ima Through Hole Radial, Disc

Product Attributes
Categories Circuit Protection
PTC Resettable Fuses
Series PolySwitch®, RXE
Part Status Obsolete
Type Polymeric
Voltage – Max 60V
Current – Max 40A
Current – Hold (Ih) (Max) 100mA
Current – Trip (It) 200mA
Time to Trip 4s
Resistance – Initial (Ri) (Min) 2.5 Ohms
Resistance – Post Trip (R1) (Max) 7.5 Ohms
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.291″ Dia x 0.120″ W (7.40mm x 3.00mm)
Height – Seated (Max) 0.457″ (11.60mm)
Lead Spacing 0.199″ (5.05mm)
Approvals CSA, TUV, UL
Manufacturer Part Number: RXE010
Manufacturer: TE Connectivity
