Description

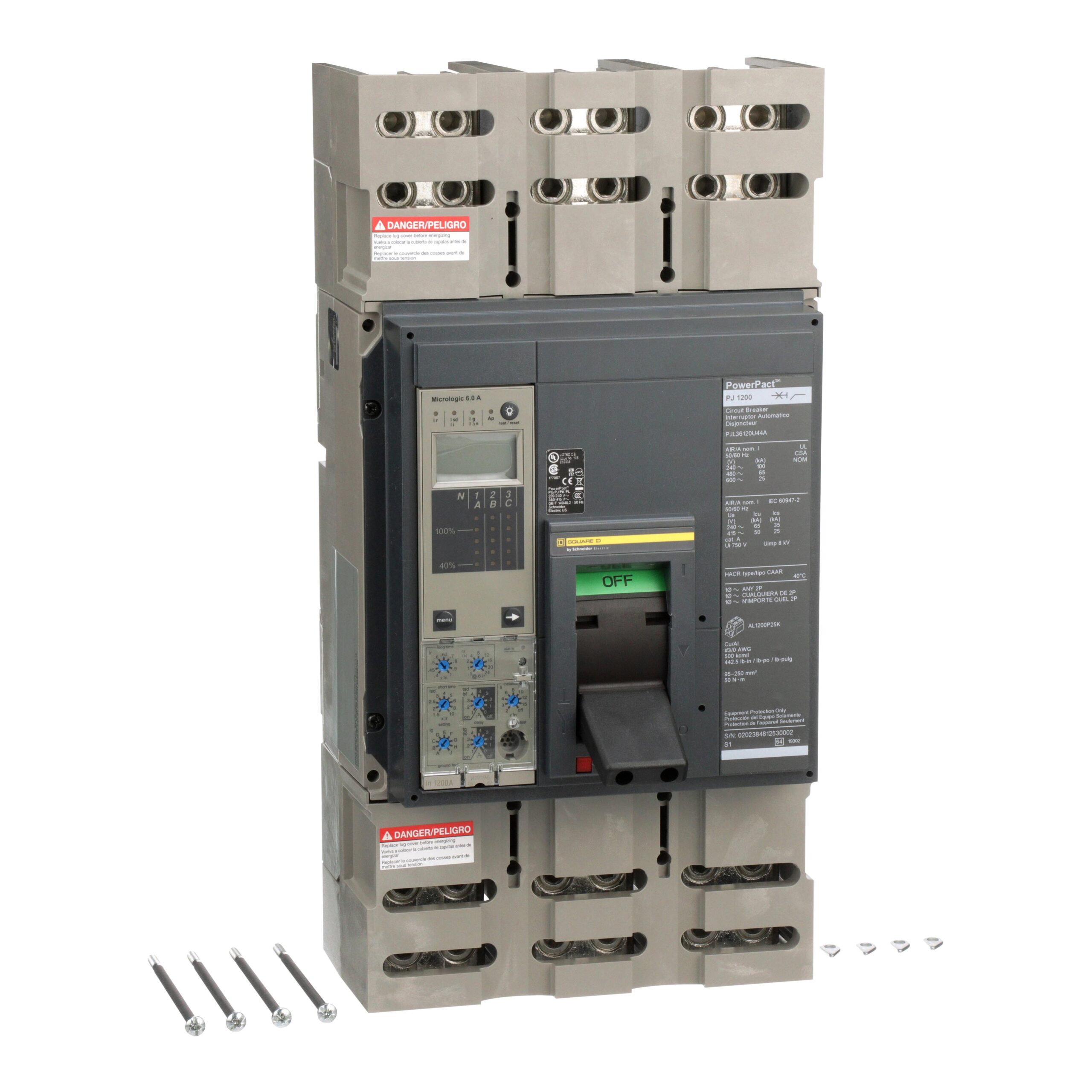

Schneider Electric Square D PJL36120U44A P Frame Molded Case Circuit Breaker UL 489 Listed, Unit Mount, 1200 Amp up to 600 VAC, Three Pole, J Interrupt Rating Chassis Mount Toggle 3-Poles CSA, UL. PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn’t have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Specifications
Interrupt Code (Molded Case Breaker)
J Interrupt Rating
Amperage (Molded Case Breaker)
1200 Amp
Frame Type (Molded Case Breaker)
P Frame
Maximum Voltage (Molded Case Breaker)
600 VAC
Mounting (Molded Case Breaker)
Unit Mount
UL Listing (Molded Case Breaker)
UL 489
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
65 Ka 480 Volt
Interrupt Rating (Molded Case Breaker)
25 Ka 600 Volt
Interrupt Rating (Molded Case Breaker)
100 Ka 240 Volt
Poles (Molded Case Breaker)
3 Pole
Breaker Type: Solid State
Mounting Type: Chassis Mount
Number of Poles: 3
Illumination: 3
Actuator Type: Toggle
VoltageRating: 600V AC
Current Rating: 1.2kA (Amps)
Package: Box

Datasheet: PJL36120U44A
