Description

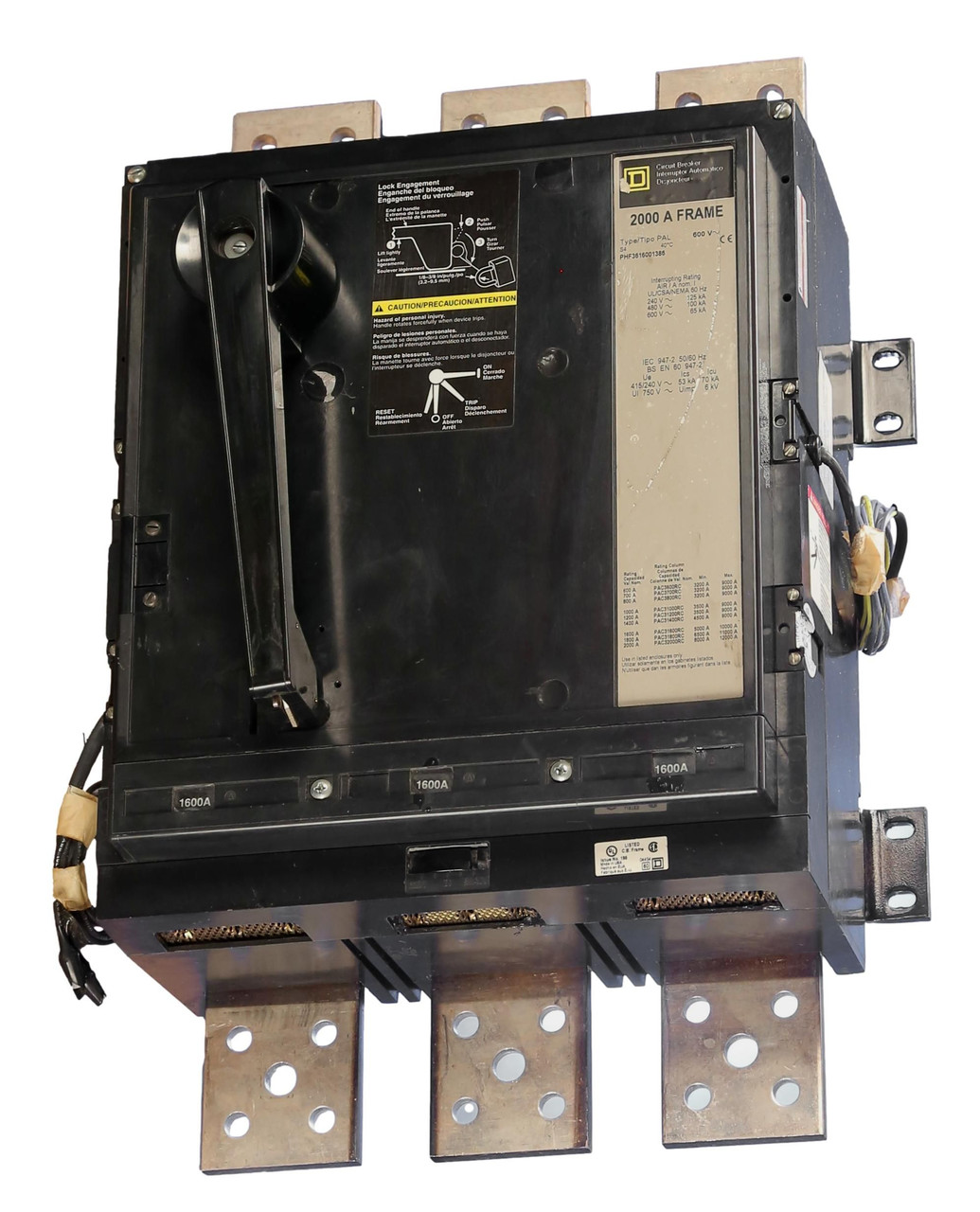

PHF3616001386 Square-D / Schneider Electric Molded Circuit Breaker, PHF Series, type PHF, 3P, 3PH, 1600A, 600V, 100kA@480V, high interrupting capacity, Bolt-On, complete with 24Vac shunt trip, LI – Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic, molded case circuit breakers, SquareD PAL circuit breaker; cat # PHF3616001386, 1600 amp rated, 600 volt AC, 3 pole, 2000 amp frame, manually operated (M/O)

Shunt Trip
24 Volt DC
1500 mA
Auxiliary Switch
15.1 Amp @ 120-250 Volt AC
0.5 Amp @ 125 Volt DC
0.25 Amp @ 250 Volt DC
Interrupting Ratings
240 Volt @ 125 kA
480 Volt @ 100 kA
600 Volt @ 65 kA

Specs:

PHF3616001386
2000 Amp Frame
3 Pole
1600 Amp
600 Vac
Auxiliary Switch
Shunt Trip
Manufacturer : Square D
Frame : PHF
Amperage : 1600
Voltage : 600V
Poles : 3
Ground Fault : No
Shunt Trip : Yes
Operation : Manual
Fixed Mount or Draw Out : Fixed Mount
