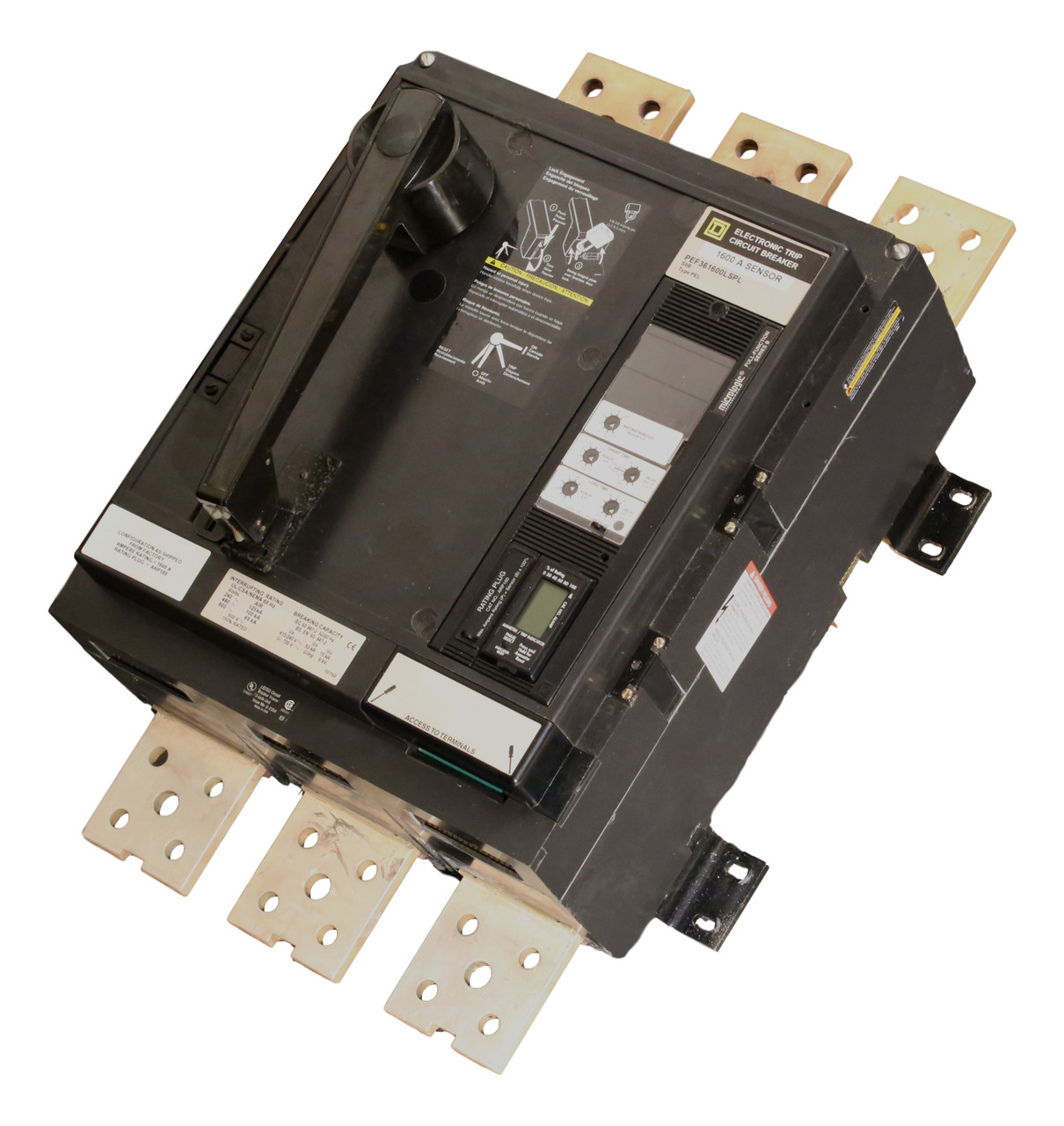

PEF361600LSG SquareD / Schneider Electric Circuit breaker Molded Case Circuit Breaker. Family Micrologic; Type PEF; 600 Voltage; 3 Pole; 3 Phase; 1600 Amp; 100kA@480V AIC; Bolt-On Mounting. The Square D PEF361600LSG is a high-performance molded case circuit breaker engineered for heavy industrial and commercial power systems.

Electrical & Performance Ratings

Continuous Current Rating: 1600 A

Poles / Phase: 3-Pole, 3-Phase

Voltage Class: up to 600 VAC

Interrupting Rating (AIC):
  • 100 kA @ 480 VAC
  • 125 kA @ 240 VAC
  • 65 kA @ 600 VAC

Frequency: 50/60 Hz

Frame / Family: PE Frame, Type PEF

Trip Unit / Protection: LSIG – Long-time, Short-time, Instantaneous, Ground Fault (Micrologic electronic trip)

Mounting: Fixed / Bolt-on

Dimensions (approx): 13.7 in (W) × 10.47 in (D) × 20.06 in (H)

Approvals: UL / CSA listed

Additional Information

Catalog / Model Number: PEF361600LSG

Alternative Identifiers: sometimes listed as PEF361600LSGPL / PEF361600LSG

Shipping: typically ships via UPS Ground / freight

Package Size (approx): 25 in × 25 in × 25 in, ~80 lb shipping weight

Applications

Main service disconnects

Large feeder protection

Switchgear and panelboards requiring advanced LSIG protection
