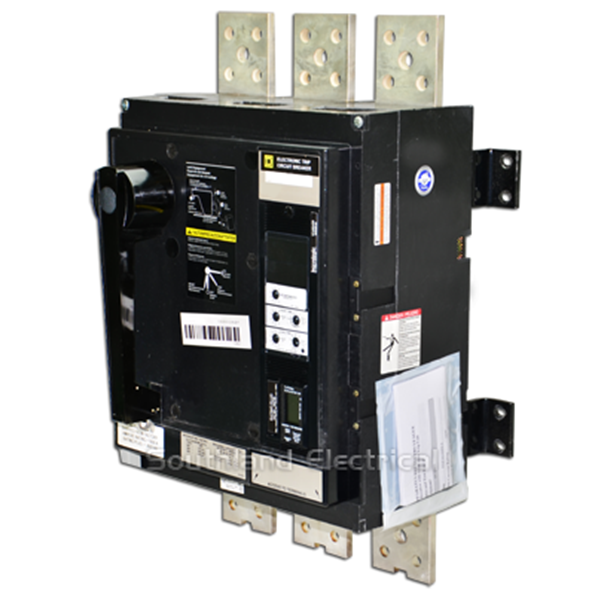

PEF1236LIG Square-D Circuit Breaker 1200A 600V 3-Poles

SquareD / Schneider Electric Square D PEF1236LIG 1000 amp 600 volt 3 Pole Ground Fault Circuit Breaker 1200 Amp Frame / 1000 Amp Rating Plug Micrologic LIG

Contact us today for current availability and pricing.

Description

PEF1236LIG Square-D / Schneider Electric Circuit breaker Pre-Micrologic, type PEF, 3P, 3PH, 1200A, 600V, 100kA@480V, Bolt-On, complete with Micrologic non-interchangeable trip, LIG – Long-Time, Instantaneous and Ground Fault trip functions and rating plug, lugs not included, Solid State electronic, molded case circuit breakers

Amperage 1200 Amp
Frequency Ac 50-60Hz
Voltage 600V
Manufacturer Square D
Pole 3 Pole
Enclosure Open(None)
Frame P Frame
Series Micrologic Electronic Trip
Phase 3 Phase
Mounting Style Bolt-On
Protection Solid State
Trip Functions LIG – Long-Time, Instantaneous and Ground Fault
Interrupting Rating (AIC) 100kA@480V
Interrupting Capacity Rating 125 Kiloampere @ 240 VAC, 100 Kiloampere @ 480 VAC, 65 Kiloampere @ 600 VAC
