Description

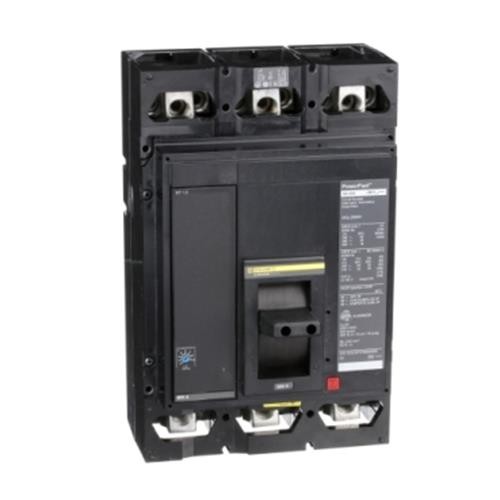

MXL36800G Schneider Electric Molded Circuit Breaker , Micrologic, type MXL, 3Poles, 3PH, 800A, 600V, 65kA@480V, high interrupting capacity, Feed-Thru, complete with Micrologic non-interchangeable trip, LSIG – Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, ARP100 installed rating plug and line & load side lug terminals, Solid State electronic, molded case circuit breakers.
MXL36800G is a Square D molded case circuit breaker designed for industrial applications requiring high performance and reliability.This 3 pole circuit breaker features an 800 ampere current rating and operates at up to 600 volts AC. It belongs to the M frame series with a Micrologic electronic trip unit providing advanced protection including ground fault trip capabilities. The breaker has a high interrupt rating of 65 kiloamperes at 240/480 VAC and 25 kiloamperes at 600 VAC, ensuring robust fault clearing capacity. It uses lug-type terminals for secure connections and is UL, CSA, and NOM certified.
Key Specifications
Manufacturer: Square D
Part Number: MXL36800G
Amperage: 800 Amp
Voltage Rating: 600 Volt AC
Poles: 3
Frame: M Frame
Trip Unit: Micrologic Electronic Trip with Ground Fault
Interrupt Rating: 65 kA at 240/480 VAC, 25 kA at 600 VAC
Terminal Type: Lug
Certifications: UL, CSA, NOM
