Description

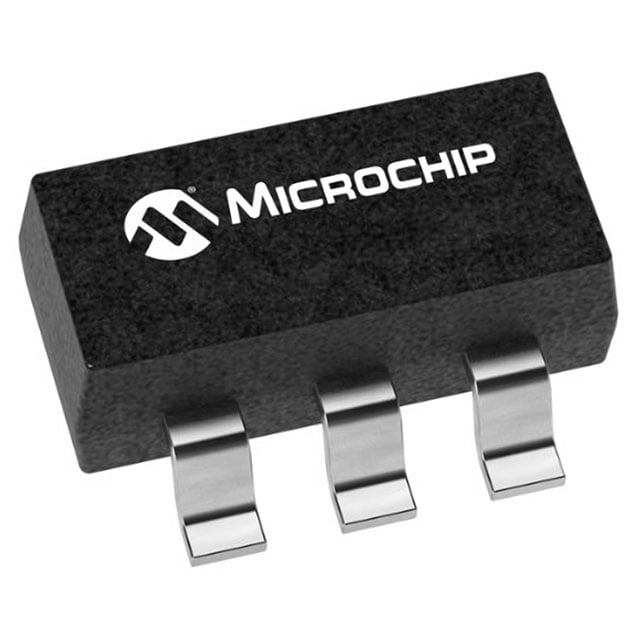

MCP65R41T-1202E/CHY IC Linear Comparator 1-Channel CMOS, Push-Pull, TTL 70dB CMRR, 80dB PSRR 8µs Surface Mount SOT-23-6
Number of Element: 1
Supply Voltage: 1.8V ~ 5.5V
Current Input Bias (Max): 1pA @ 5.5V
Voltage Input Offset (Max): 10mV @ 5.5V
Current Output (Typ): 50mA
Current – Quiescent (Max): 4µA
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: SOT-23-6
