Description

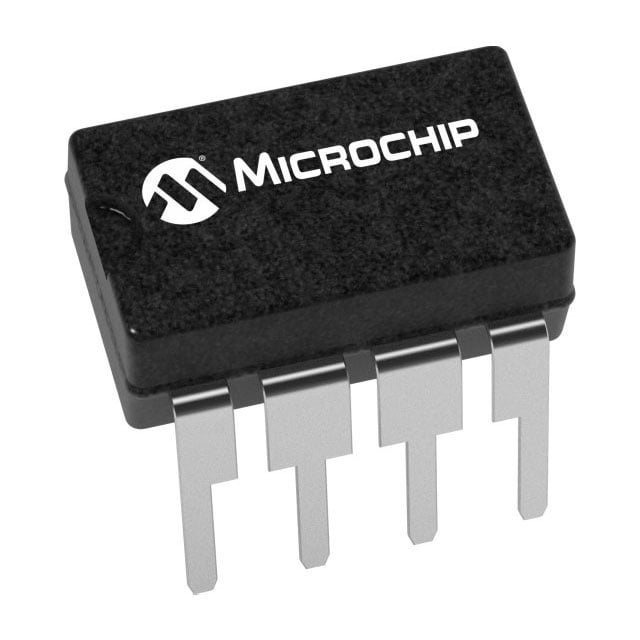

MCP6546-I/P IC Linear Comparator 1-Channel CMOS, Open-Drain, Rail-to-Rail, TTL 70dB CMRR, 80dB PSRR 8µs Through Hole 8-PDIP
Number of Element: 1
Supply Voltage: 1.6V ~ 5.5V
Current Input Bias (Max): 1pA @ 5.5V
Voltage Input Offset (Max): 7mV @ 5.5V
Current Output (Typ): 30mA
Current – Quiescent (Max): 1µA
Operating Temperature: -40°C ~ 85°C
Mounting Type: Through Hole
Package / Case: 8-DIP (0.300″, 7.62mm)
