Description

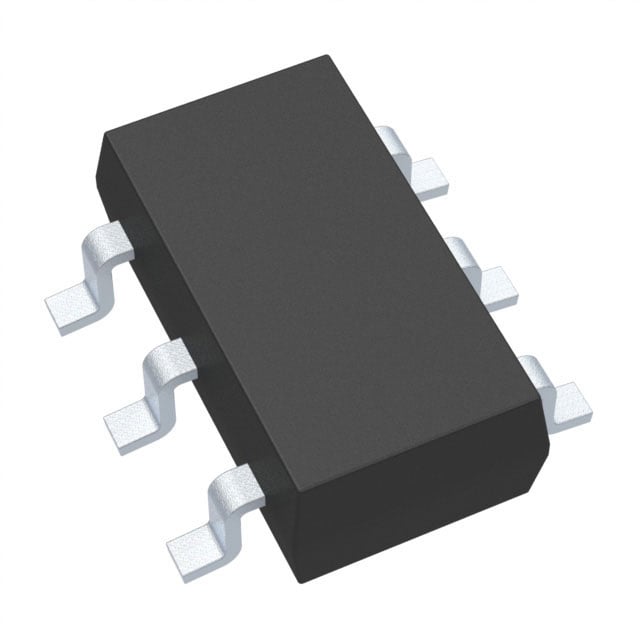

MAX998EUT+T IC Linear Comparator 1-Channel Push-Pull, Rail-to-Rail 95dB CMRR, 100dB PSRR 28ns Surface Mount SOT-23-6
Number of Element: 1
Supply Voltage: 2.7V ~ 5.5V
Current Input Bias (Max): 0.075µA @ 5.5V
Voltage Input Offset (Max): 2mV @ 5V
Current Output (Typ):
Current – Quiescent (Max): 650µA
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Package / Case: SOT-23-6
