Description

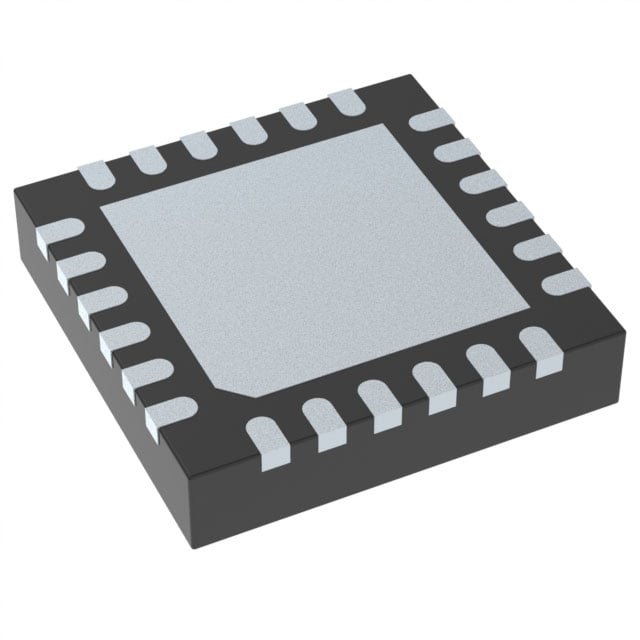

LMH7322SQ/NOPB IC Linear Comparator 2-Channel Differential, LVDS, RSPECL 80dB CMRR, 80dB PSRR 0.783ns Surface Mount 24-WQFN (4×4)
Number of Element: 2
Supply Voltage: 2.7V ~ 12V, ±1.35V ~ 6V
Current Input Bias (Max): 5µA @ 5V
Voltage Input Offset (Max): 8mV @ 5V
Current Output (Typ): 25mA
Current – Quiescent (Max): 10mA
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 24-WFQFN Exposed Pad
