Description

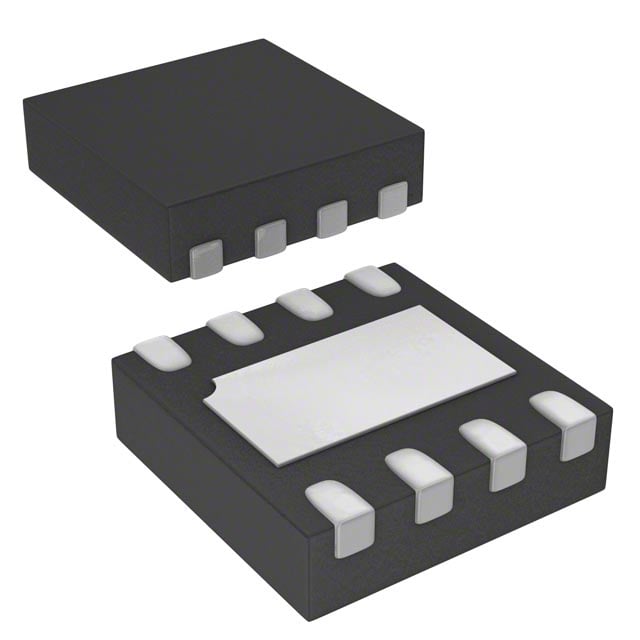

LM2903Q2T IC Linear Comparator 2-Channel Open-Collector, Rail-to-Rail Surface Mount 8-DFN (2×2)
Number of Element: 2
Supply Voltage: 2V ~ 36V, ±1V ~ 18V
Current Input Bias (Max): 0.25µA @ 5V
Voltage Input Offset (Max): 7mV @ 5V
Current Output (Typ): 16mA @ 5V
Current – Quiescent (Max): 2.5mA
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 8-UFDFN Exposed Pad
