Description

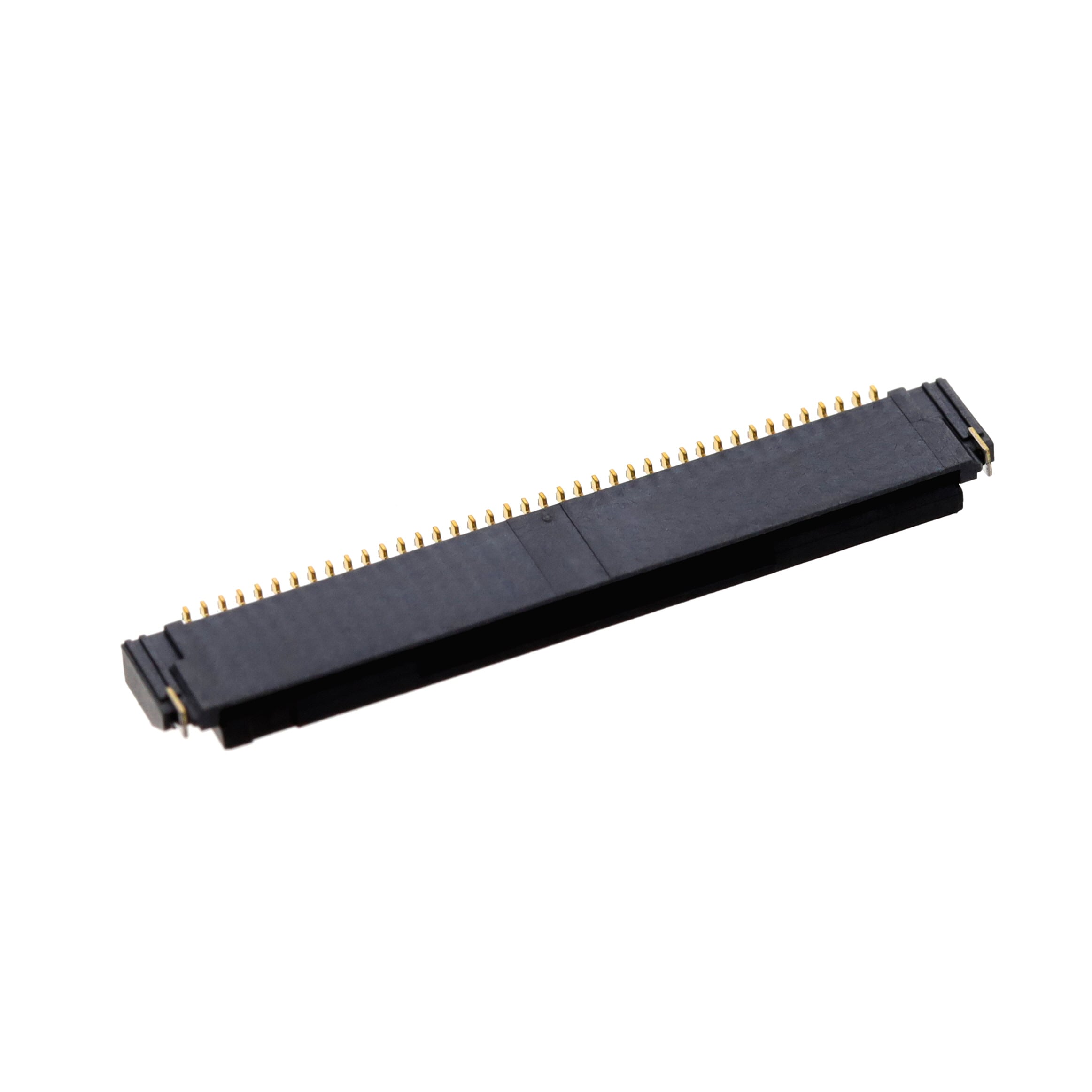

FH55-40S-0.5SH Hirose Electric Co Ltd FH55 FPC Connector 40 Position, 0.020″ (0.50mm) Pitch, 50V Solder Retention, Zero Insertion Force (ZIF) Surface Mount Crimp
Connector Flat Flex Type: FPC
Connector Contact Type: Contacts, Bottom
Number of Position: 40
Pitch: 0.020″ (0.50mm)
Termination: Crimp
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.059″ (1.50mm)
Cable End Type: Tabbed
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -55°C ~ 85°C
Housing Material: Liquid Crystal Polymer (LCP)
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount
Manufacturer: Hirose
Manufacturer Part #: FH55-40S-0.5SH
