Description

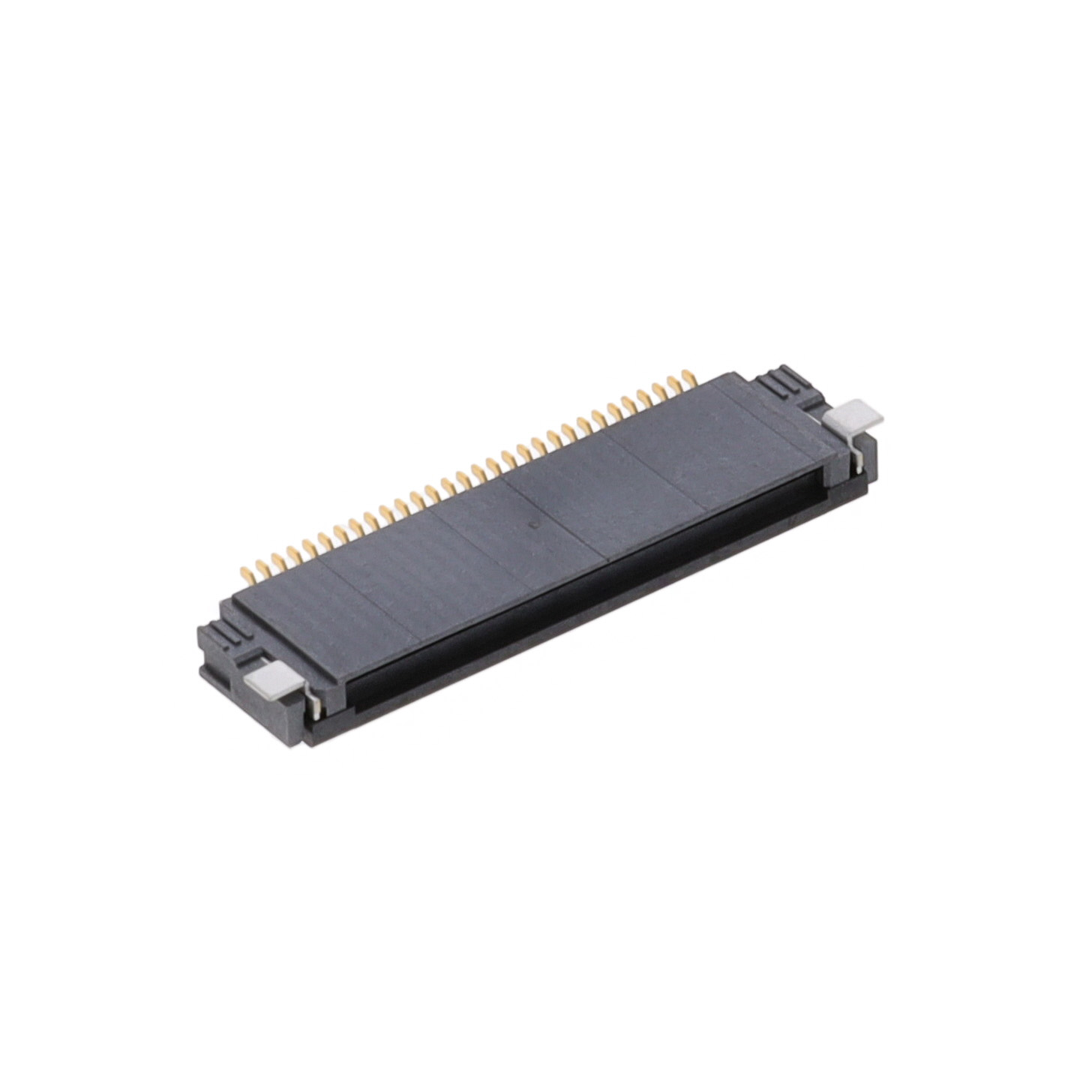

FH52K-30S-0.5SH Hirose Electric Co Ltd FH52 FFC, FPC Connector 30 Position, 0.020″ (0.50mm) Pitch, 50V Solder Retention Surface Mount, Right Angle Solder Liquid Crystal Polymer (LCP), Halogen Free
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Bottom
Number of Position: 30
Pitch: 0.020″ (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.079″ (2.00mm)
Cable End Type: Tabbed
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: -40°C ~ 125°C
Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: Hirose
Manufacturer Part #: FH52K-30S-0.5SH
