Description

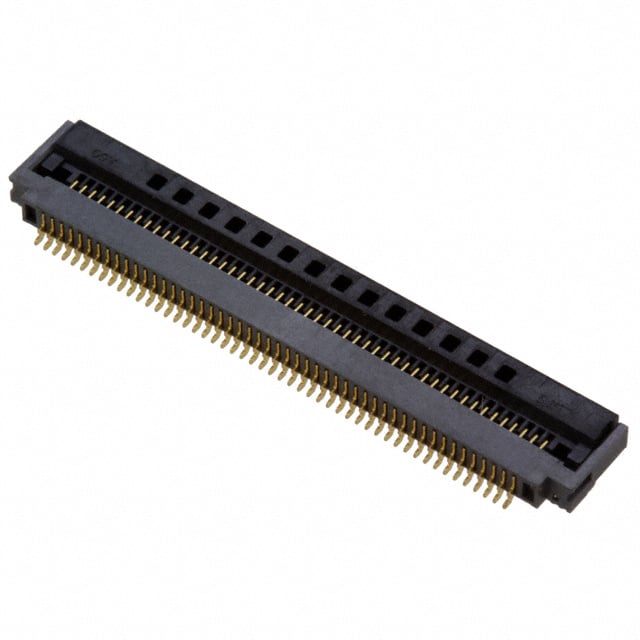

FH52-50S-0.5SH Hirose Electric Co Ltd FH52 FFC, FPC Connector 50 Position, 0.020″ (0.50mm) Pitch, – Surface Mount, Right Angle Solder Liquid Crystal Polymer (LCP), Halogen Free
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Bottom
Number of Position: 50
Pitch: 0.020″ (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.079″ (2.00mm)
Cable End Type: Tabbed
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 105°C
Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: Hirose
Manufacturer Part #: FH52-50S-0.5SH
