Description

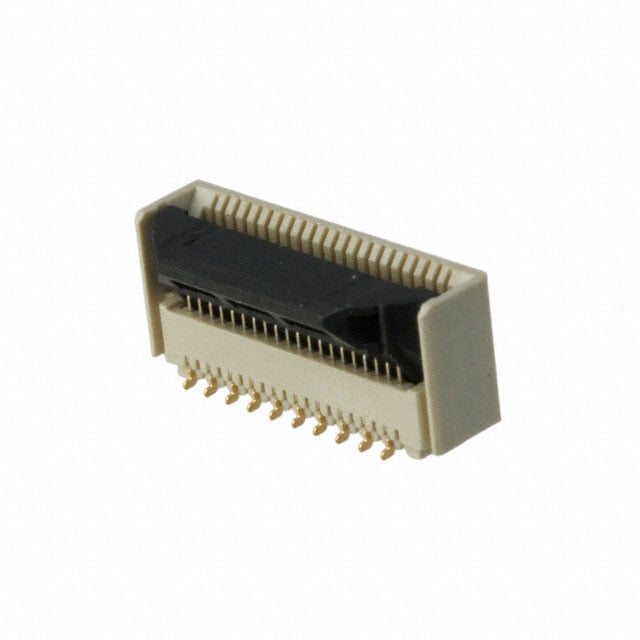

FH40-20S-0.5SV Hirose Electric Co Ltd FH40 FPC Connector 20 Position, 0.020″ (0.50mm) Pitch, 50V Surface Mount Solder Liquid Crystal Polymer (LCP)
Connector Flat Flex Type: FPC
Connector Contact Type: Contacts, Vertical – 1 Sided
Number of Position: 20
Pitch: 0.020″ (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.228″ (5.80mm)
Cable End Type: Tabbed
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 105°C
Housing Material: Liquid Crystal Polymer (LCP)
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount
Manufacturer: Hirose
Manufacturer Part #: FH40-20S-0.5SV
