Description

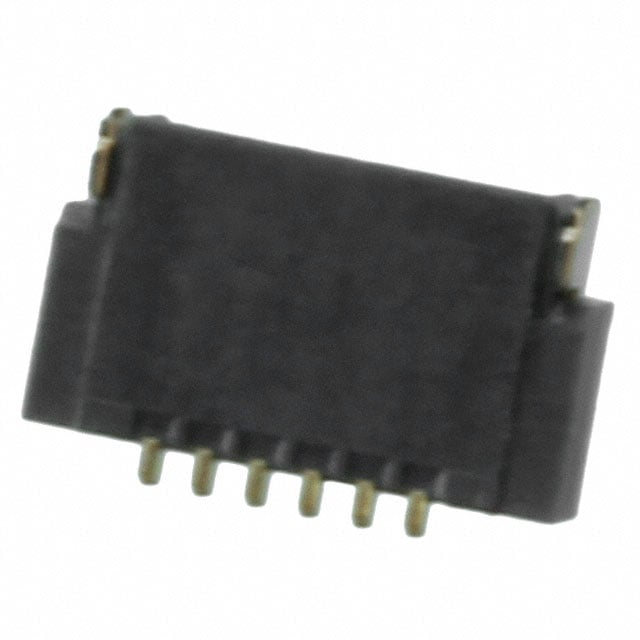

FH34SRJ-6S-0.5SH(50) Hirose Electric Co Ltd FH34SRJ FFC, FPC Connector 6 Position, 0.020″ (0.50mm) Pitch, 50V Zero Insertion Force (ZIF) Surface Mount, Right Angle Solder Polyamide (PA), Nylon
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Top and Bottom
Number of Position: 6
Pitch: 0.020″ (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.039″ (1.00mm)
Cable End Type: Tapered
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -55°C ~ 105°C
Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: Hirose
Manufacturer Part #: FH34SRJ-6S-0.5SH(50)
