Description

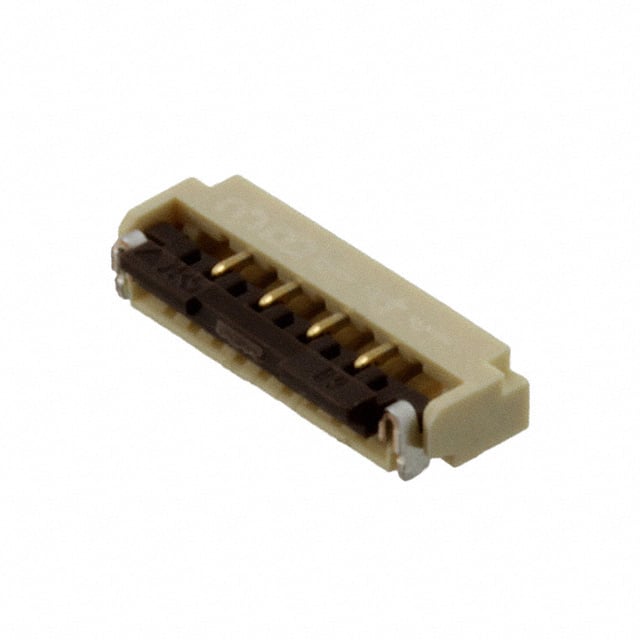

FH33-4S-1SH(10) Hirose Electric Co Ltd FH33 FFC, FPC Connector 4 Position, 0.039″ (1.00mm) Pitch, 50V Zero Insertion Force (ZIF) Surface Mount, Right Angle Solder Polyamide (PA), Nylon
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Bottom
Number of Position: 4
Pitch: 0.039″ (1.00mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.047″ (1.20mm)
Cable End Type: Tapered
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -55°C ~ 85°C
Housing Material: Polyamide (PA), Nylon
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: Hirose
Manufacturer Part #: FH33-4S-1SH(10)
