Description

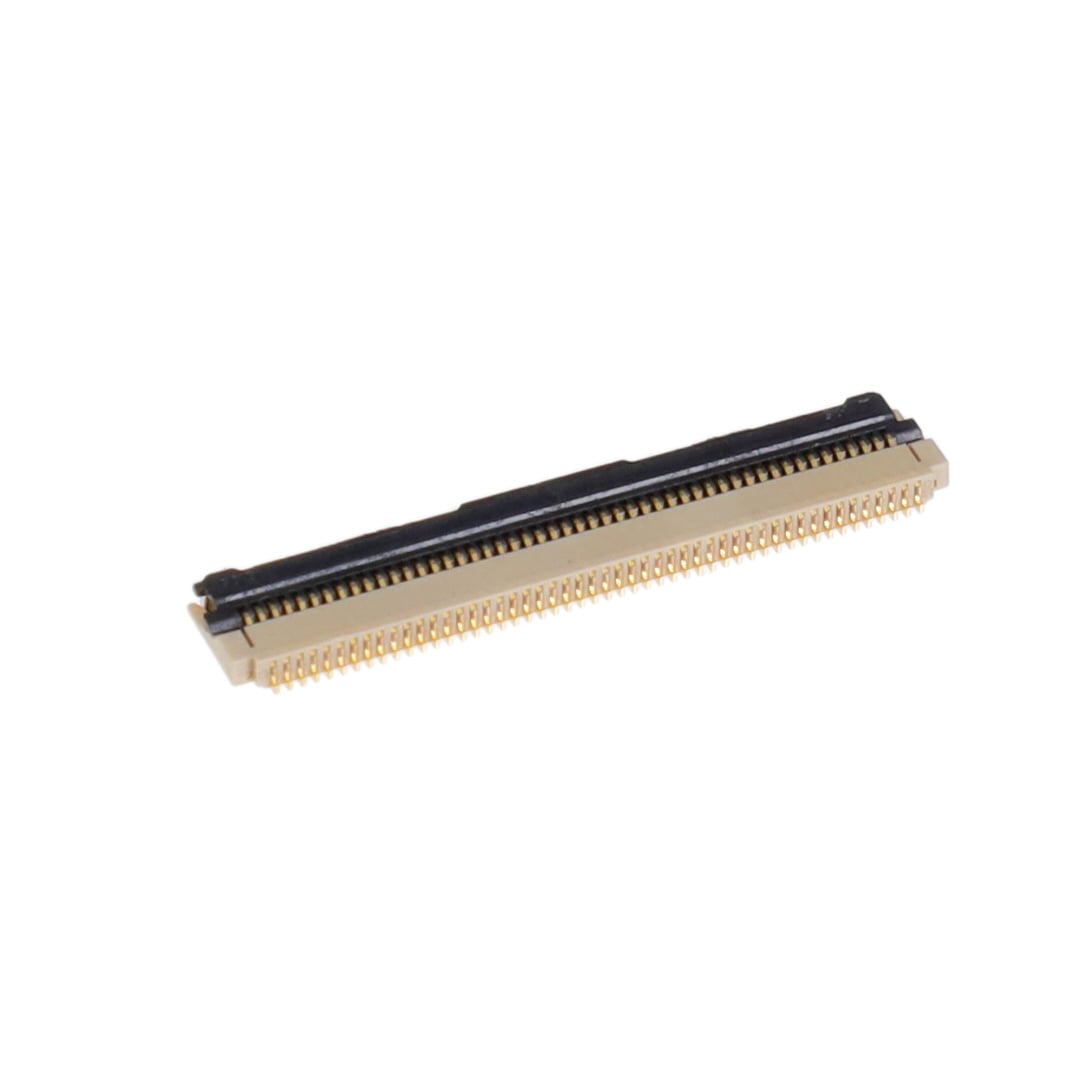

FH29DJ-100S-0.2SHW(99) Hirose Electric Co Ltd FH29D FPC Connector 100 Position, 0.008″ (0.20mm) Pitch, 40V Solder Retention, Zero Insertion Force (ZIF) Surface Mount, Right Angle Solder Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Connector Flat Flex Type: FPC
Connector Contact Type: Contacts, Bottom
Number of Position: 100
Pitch: 0.008″ (0.20mm)
Termination: Solder
FFC, FCB Thickness: 0.20mm
Height Above Board: 0.047″ (1.20mm)
Cable End Type: Tabbed
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -55°C ~ 85°C
Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
Material Flammability Rating:
Mounting Type: Surface Mount, Right Angle
Manufacturer: Hirose
Manufacturer Part #: FH29DJ-100S-0.2SHW(99)
