Description

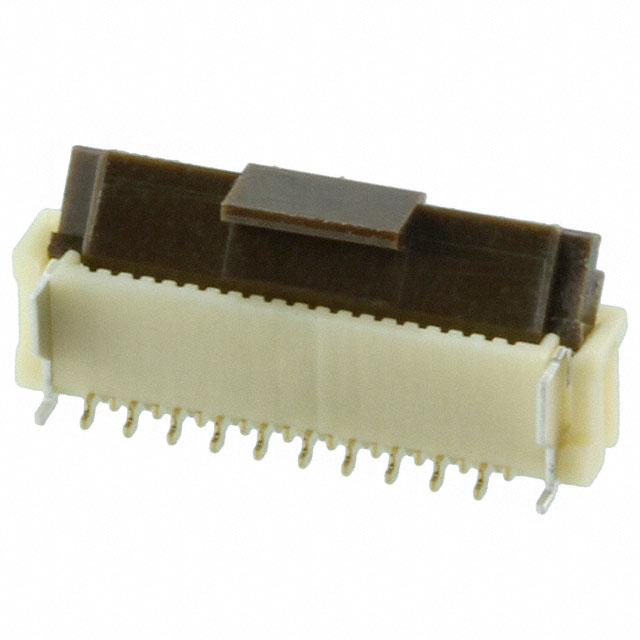

FH12-20S-0.5SVA(54) Hirose Electric Co Ltd FH12 FFC, FPC Connector 20 Position, 0.020″ (0.50mm) Pitch, 50V Solder Retention, Zero Insertion Force (ZIF) Surface Mount Solder Polyphenylene Sulfide (PPS)
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Vertical – 1 Sided
Number of Position: 20
Pitch: 0.020″ (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.142″ (3.60mm)
Cable End Type: Straight
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Housing Material: Polyamide (PA), Nylon
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount
Manufacturer: Hirose
Manufacturer Part #: FH12-20S-0.5SVA(54)
