Description

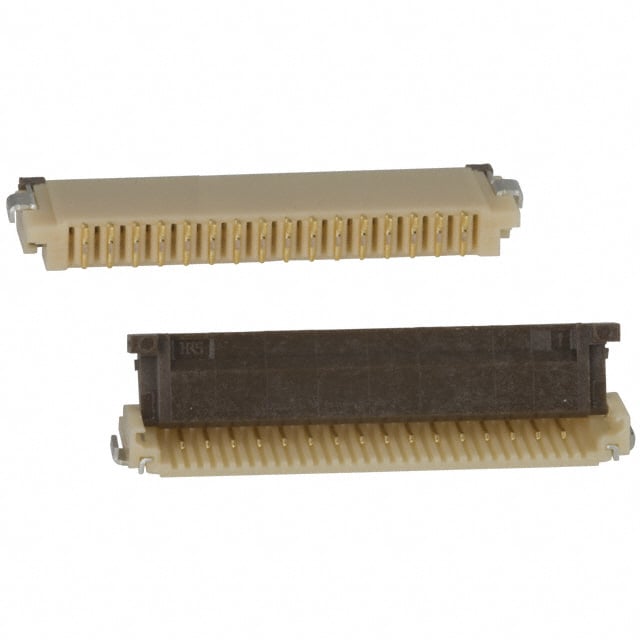

FH12-16S-1SH(55) Hirose Electric Co Ltd FH12 FFC, FPC Connector 16 Position, 0.039″ (1.00mm) Pitch, 50V Solder Retention, Zero Insertion Force (ZIF) Surface Mount, Right Angle Solder Polyphenylene Sulfide (PPS)
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Bottom
Number of Position: 16
Pitch: 0.039″ (1.00mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.079″ (2.00mm)
Cable End Type: Straight
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Housing Material: Polyamide (PA), Nylon
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: Hirose
Manufacturer Part #: FH12-16S-1SH(55)
