Description

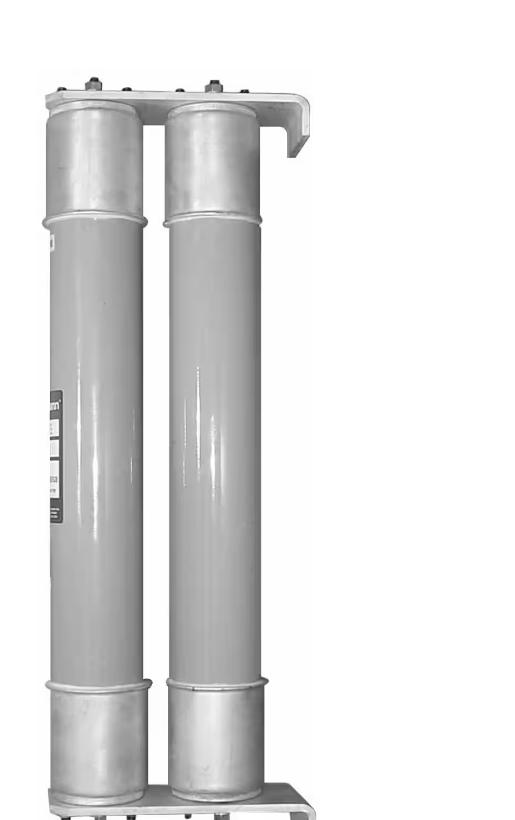

ECL155-30E Bussmann Transformer Protection Indicating Cartridge Fuse 30A 15.5 kVAC Cylindrical, Blade Terminal (Bolt) Bolt Mount Bussmann power fuse with a voltage rating of 15.5(kV) and an amperage rating of 30(A).

SPECIFICATIONS
Body Size : 19.38 in L x 3 in W
Frequency Rating : 50/60 Hz
Material : Glass Epoxy Fuse Tube
Type : Current Limiting
Amperage Rating : 30 A
Voltage Rating : 15.5 kV
Interrupt Rating : 63 kA
Class : E
FEATURES
Connection Type: Clip-Lock End x Clip-Lock End
Mfr: Eaton – Bussmann Electrical Division
Mounting Type: Bolt Mount
Fuse Type: Cartridge
Current Rating (Amps): 30A
Voltage Rating AC: 15.5 kVAC
Breaking Capacity @ Rated Voltage: 63kA
Features: Indicating
Size / Dimension: 0.763″ L x 0.118″ W (19.38mm x 3.00mm)
Datasheet: Fuse ECL155
