Description

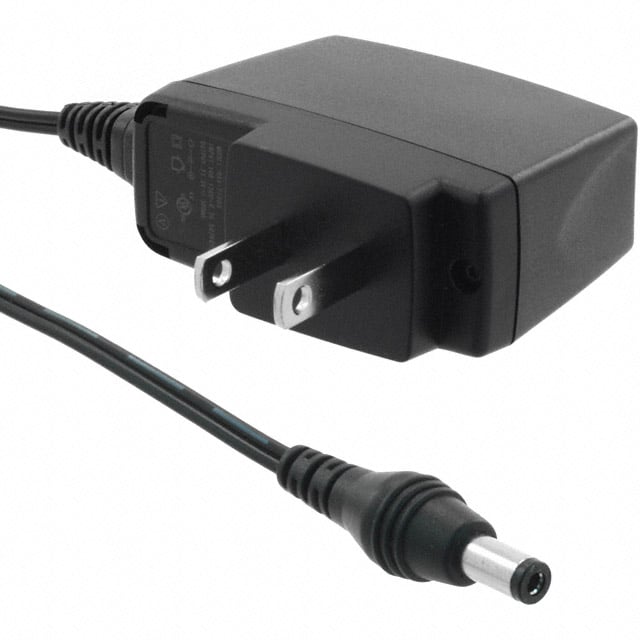

DA4-230US ARTESYN AC-DC Adapter 90-132VAC Out:23V, 300mA 6.9W Wall Mount (Class II) Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Series: DA4 US (3-8W)
Form: Wall Mount (Class II)
Region: North America
Input Connector: NEMA 1-15P
Input Type: Fixed Blade
Input Voltage: 90-132VAC
Output Voltage: 23V
Output Current(Max): 300mA
Power: 6.9W
No Load Power Consumption:
Polarization: Positive Center
Efficiency: Level V
Operating Temperature: 0°C-40°C
Output Connector: Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Cord Length: 78.74″ (2.0m)
Size: 2.36″ L x 1.10″ W x 1.99″ H (60.0mm x 28.0mm x 50.6mm)
Application: ITE (Commercial)
CB, CE
Manufacturer Part #: DA4-230US
Manufacturer: ARTESYN
Datasheet: DA4_US_Series.pdf
