Description

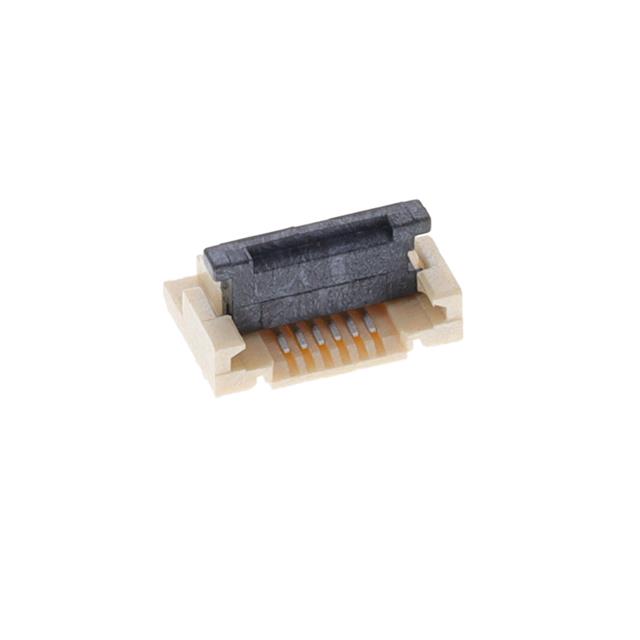

CF31061D0R0-05-NH Cvilux USA CF31 FFC, FPC Connector 6 Position, 0.020″ (0.50mm) Pitch, 50V Solder Retention, Zero Insertion Force (ZIF) Surface Mount, Right Angle Solder Thermoplastic, Halogen Free
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Bottom
Number of Position: 6
Pitch: 0.020″ (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.29mm ~ 0.34mm
Height Above Board: 0.077″ (1.95mm)
Cable End Type: Straight
Contact Material: Phosphor Bronze
Contact Finish: Tin
Operating Temperature: -40°C ~ 85°C
Housing Material: Thermoplastic, Halogen Free
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: Cvilux
Manufacturer Part #: CF31061D0R0-05-NH
