Description

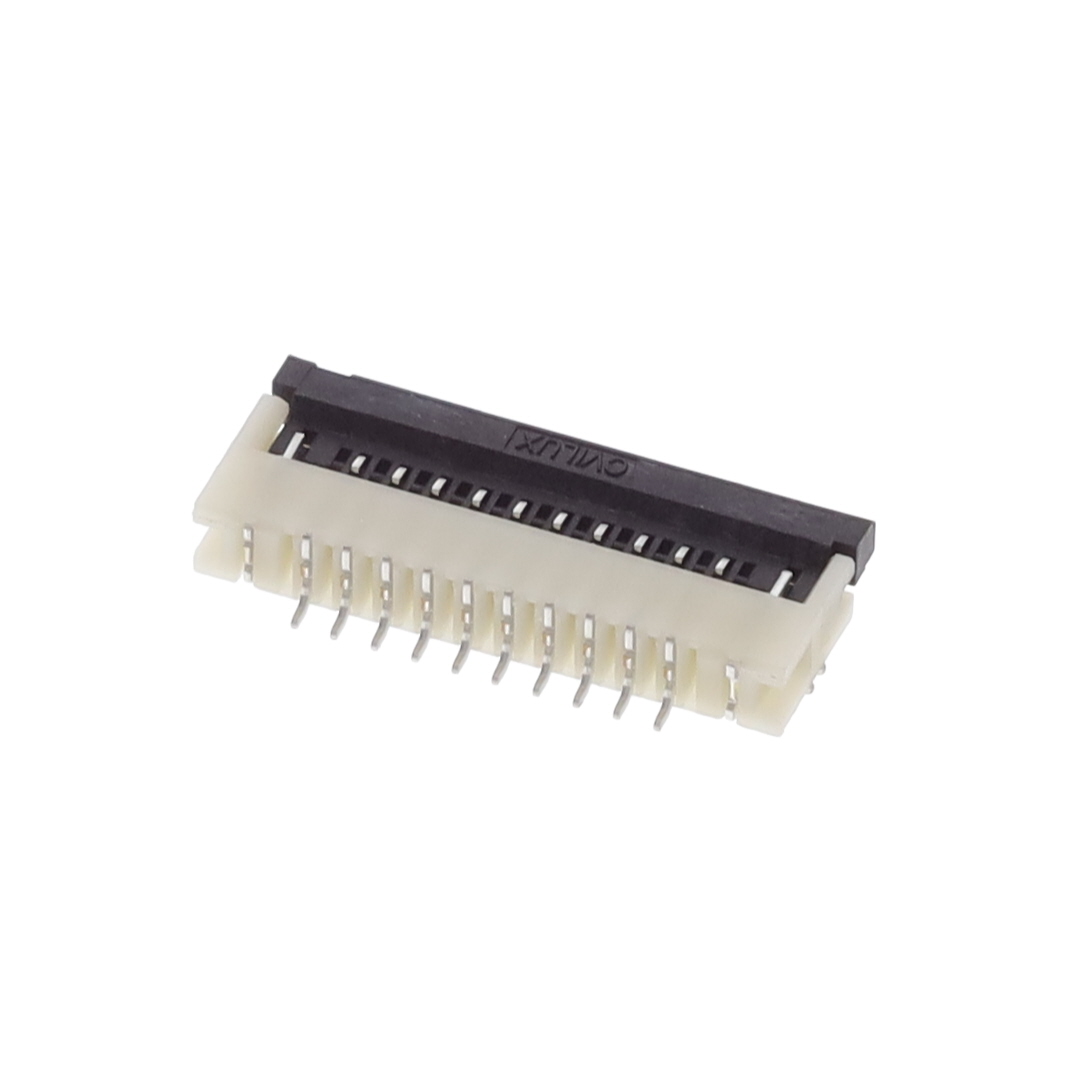

CF25101D0R0-10-NH Cvilux USA CF25 FFC, FPC Connector 10 Position, 0.039″ (1.00mm) Pitch, 100V Solder Retention, Zero Insertion Force (ZIF) Surface Mount, Right Angle Solder Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Bottom
Number of Position: 10
Pitch: 0.039″ (1.00mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.087″ (2.20mm)
Cable End Type: Straight
Contact Material: Phosphor Bronze
Contact Finish: Tin
Operating Temperature: -40°C ~ 105°C
Housing Material: Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: Cvilux
Manufacturer Part #: CF25101D0R0-10-NH
