Description

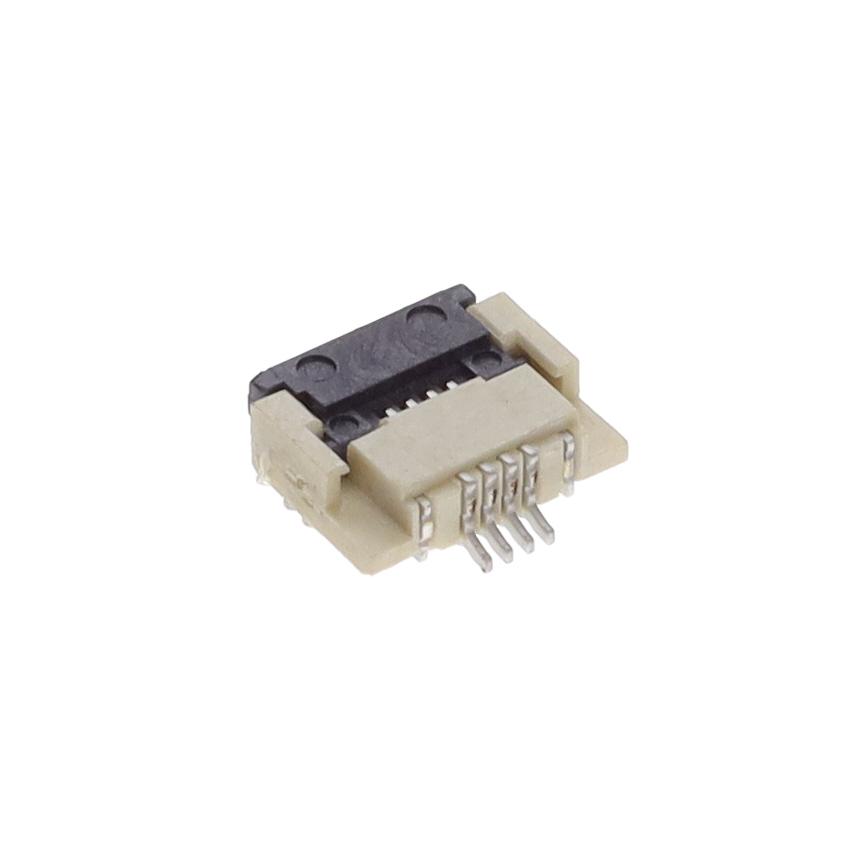

CF25041D0R0-10-NH Cvilux USA CF25 FFC, FPC Connector 4 Position, 0.039″ (1.00mm) Pitch, 100V Solder Retention, Zero Insertion Force (ZIF) Surface Mount, Right Angle Solder Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Bottom
Number of Position: 4
Pitch: 0.039″ (1.00mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.087″ (2.20mm)
Cable End Type: Straight
Contact Material: Phosphor Bronze
Contact Finish: Tin
Operating Temperature: -40°C ~ 105°C
Housing Material: Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: Cvilux
Manufacturer Part #: CF25041D0R0-10-NH
