Description

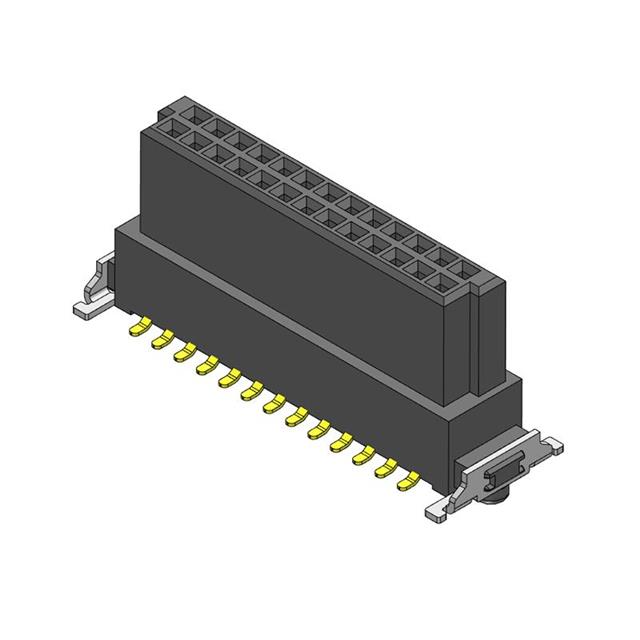

CBEC223-1379B001C1AF Greenconn Board to Board Female Socket Connector Receptacle 26 Position, 0.050″ (1.27mm) Pitch Surface Mount1.7A per Contact Gold Flash Board Guide, Pick and Place, Solder Retention
Style: Board to Board
Connector Type: Receptacle
Contact Type: Female Socket
Number of Position: 26
Pitch: 0.050″ (1.27mm)
Termination: Solder
Mounting Type: Surface Mount
Contact Finish Post: Gold
Color: Black
Flammability Rating: UL94 V-0
Operating Temperature: -55°C ~ 125°C
Fastening Type: Push-Pull
Package: Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Datasheet: Datasheet
