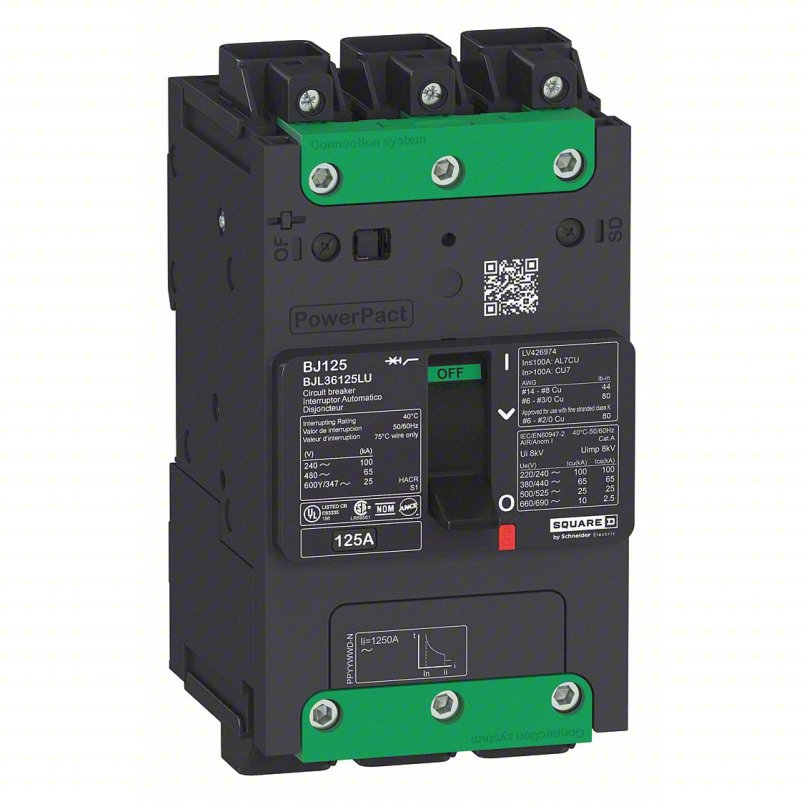

BJL36110LU Square-D / Schneider Circuit Breaker Thermal Magnetic 110A 690 V AC DC Toggle DIN Rail
BrandSQUARE D
Amps110 A
AC Voltage Rating690V AC
Max. AIR Rating100kA at 120/240V AC
For Use WithElectrical Distribution Equipment; Industrial Control Panels
Circuit Breaker TypeStandard
Number of Poles3
DC Voltage RatingNot Rated
Terminal ConnectionEverlink Lug Both Ends
Trip TypeThermal Magnetic
PhaseThree
Instantaneous TripFixed
Phase ConnectionABC
Frame Size125A/BJ
Circuit Breaker Mounting StyleUnit Mount
Height5.39 in
Width3.19 in
Depth3.15 in
Min. Wire Size14 AWG; 6 AWG
Max. Wire Size2 AWG; 3 AWG
Circuit Breaker ActuatorToggle
Max. Operating Temp.158 °F
Min. Operating Temp.-13°F
StandardsCSA C22.2 No 5; EN/IEC 60947-2; EN/IEC 60947-5-1; GB 14048.2; NEMA AB1; NMX J-266; UL 489
SeriesBJL
UNSPSC39121616
Country of OriginUSA (subject to change)
- Square D PowerPact EverLink Molded Case Circuit Breaker, 600Y/347 V AC, 110 A, 50/60 Hz, 100 kA at 240 V AC, 65 kA at 480 V AC, 25 kA at 600Y/347 V AC Interrupt, B Frame, Thermal Magnetic Trip, 1000 to 1500 A Trip, 3 Pole, Toggle Actuator, Line/Load Lug, 14 to 2/0 AWG, 14 to 3/0 AWG Al/Cu Wire, NEMA AB4/IP40 Enclosure, DIN Rail/Threaded Mount, -13 to 158 deg F, 5.39 in H x 3.19 in W x 4.09 in D, Gray
BJL36110LU Application
Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Buildings and Industrial Building Applications
BJL36110LU Item Features
- Available in 1, 2, 3, and 4 pole for unit mounts
- Dual rated AC/DC with 3 levels of breaking capacity
- A wide range of accessories, auxiliaries, and lug connections available
BJL36110LU Standards
CSA C22.2 No. 5|CE Certified|CCC Certified|EAC Approved|EN/IEC 60947-2|EN/IEC 60947-5-1|GB 14048.2|NOM Certified|UL 489|PROP65: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Part Number #BJL36110LUUNSPSC39121616UPC03606481149787
