Description

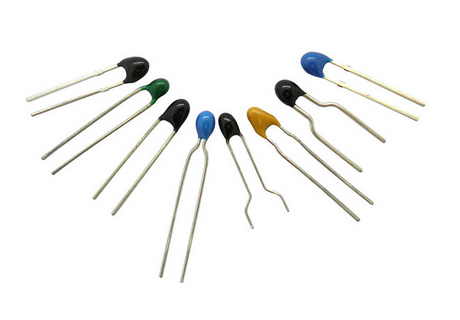

AT103F3435A Fenghua Epoxy NTC Thermistor Sensor, Epoxy ntc thermistor sensor with non-insulation lead lines have good heat resistance circulation ability and high stability, suitable for making small house hold appliances. computer mainframe board, charger, air conditioning equipment, etc.
Features:
Small size, Fast response, High sensitivity
Hig operating ranges from -30 ~ +125 degrees centigrade
High accuracy tolerances to +/-0.10 degree centigrade
Excellent thermal cycle endurance
High stability
Pb free, RoHS compliance
Applications:
Battery pack for computer & home appliance etc.
Part Number Identification:
E. G.: BT103F3435A-32L100
BT: Product series code
103: Resistance @25 degrees centigrade
F: R25 tolerance
3435: B constant
A: Test temp. Of B constant
32: AWG No.
L100: Length
BT502~3274A, BT502~3435B
BT502~3470A, BT103~3274A
BT103~3435B, BT103~3470A
BT103~3950A, BT103~4100A
BT503~3950A, BT503~4100A
BT104~3950A, BT104~4100A
BT104~4400A
|
Resistance @ 25°C |
5KΩ |
10KΩ |
30KΩ |
50KΩ |
100KΩ |
200KΩ |
|
Accuracy |
±0.1°C |
±0.2°C |
±1% |
±2% |
±3% |
±5% |
|
B value |
3380K |
3435K |
3470K |
3935K |
3950K |
3977K |
|
Wire length |
7 |
10 |
17 |
30 |
40 |
custom-made |
|
Wire sort |
CP |
|||||
Manufacturer:Fenghua
Datasheet:Fenghua/BT-thermistors.pdf
