Description

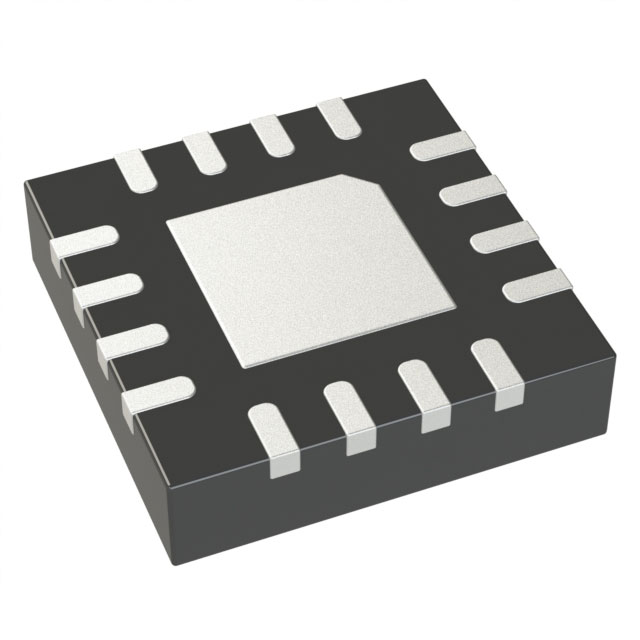

ADCMP572BCPZ-R2 IC Linear Comparator 1-Channel CML, Complementary 65dB CMRR, 74dB PSRR 0.165ns Surface Mount 16-LFCSP (3×3)
Number of Element: 1
Supply Voltage: 3.1V ~ 5.4V
Current Input Bias (Max): 25µA @ 3.3V
Voltage Input Offset (Max): 2mV @ 3.3V
Current Output (Typ): 20mA
Current – Quiescent (Max): 52mA
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Package / Case: 16-WFQFN Exposed Pad, CSP
