Description

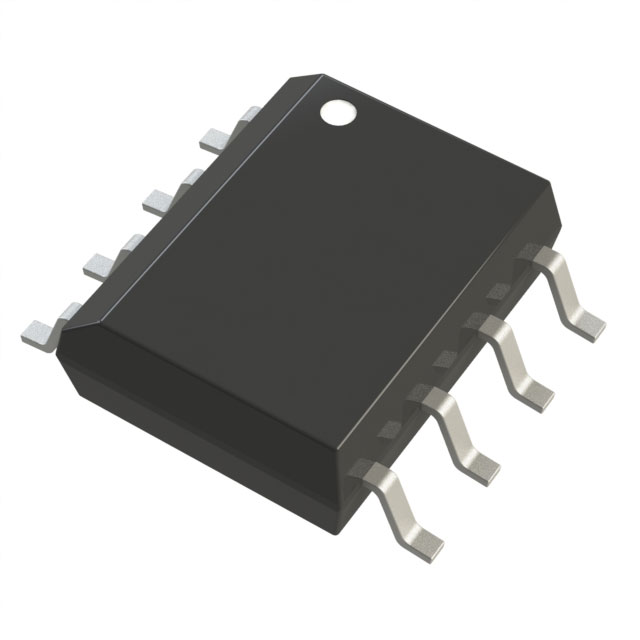

AD8561ARZ IC Linear Comparator 1-Channel CMOS, Complementary, TTL 85dB CMRR, 65dB PSRR 9.8ns Surface Mount 8-SOIC
Number of Element: 1
Supply Voltage: 3V ~ 10V, ±1.5V ~ 5V
Current Input Bias (Max): 6µA @ 5V
Voltage Input Offset (Max): 7mV @ 5V
Current Output (Typ):
Current – Quiescent (Max): 6mA, 3.3mA, 5.5mA
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154″, 3.90mm Width)
