Description

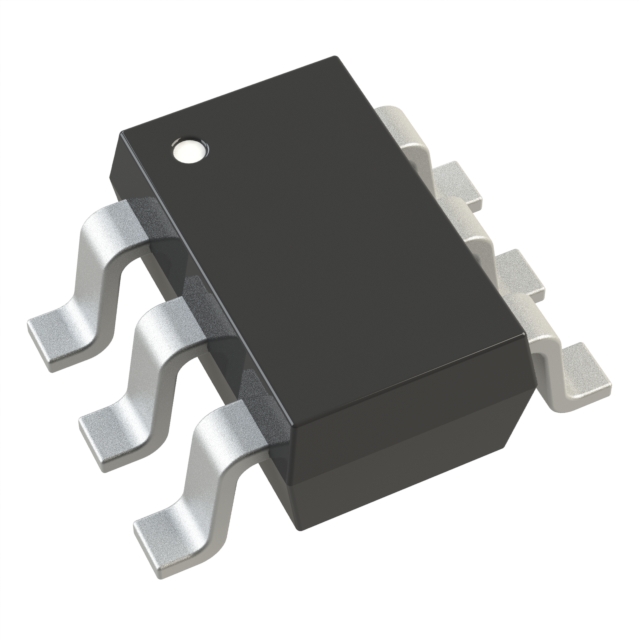

AD8468WBKSZ-R7 IC Linear Comparator 1-Channel CMOS, TTL 45dB CMRR, 50dB PSRR 60ns Surface Mount SC-70-6
Number of Element: 1
Supply Voltage: 2.5V ~ 5.5V
Current Input Bias (Max): 0.4µA @ 2.5V
Voltage Input Offset (Max): 10mV @ 2.5V
Current Output (Typ): 50mA
Current – Quiescent (Max): 1.3mA
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 6-TSSOP, SC-88, SOT-363
