Description

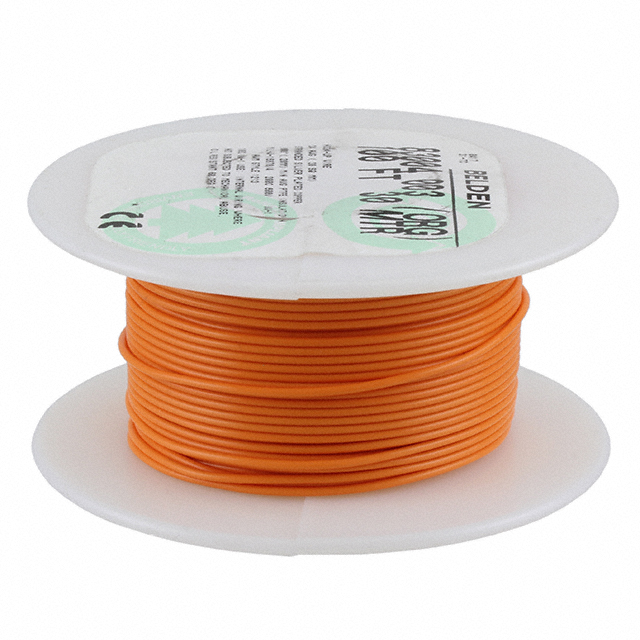

83003 003100 Belden Inc. Hook-Up Wire 24AWG 19/36 600V 100.0′ (30.5m) UL Style 1213 MILW16878/4 High Temperature Orange Spool
Type: Hook-Up
Wire Gauge: 24AWG
Package: Spool
Length: 100.0′ (30.5m)
Voltage: 600V
Conductor Strand: 19/36
Conductor Material: Copper, Silver Coated
Jacket (Insulation) Material: Tetrafluoroethylene (TFE)
Jacket (Insulation) Diameter: 0.044″ (1.12mm)
Jacket (Insulation) Thickness: 0.010″ (0.25mm)
Operating Temperature: 70°C ~ 200°C
Jacket Color: Orange
Datasheet: 83003_techdata.pdf
