Description

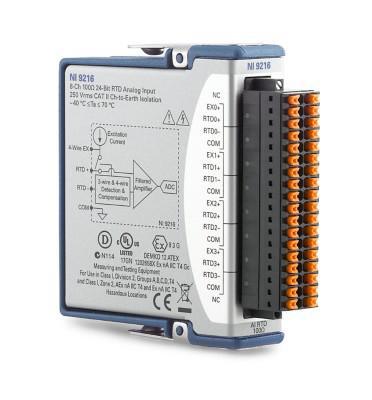

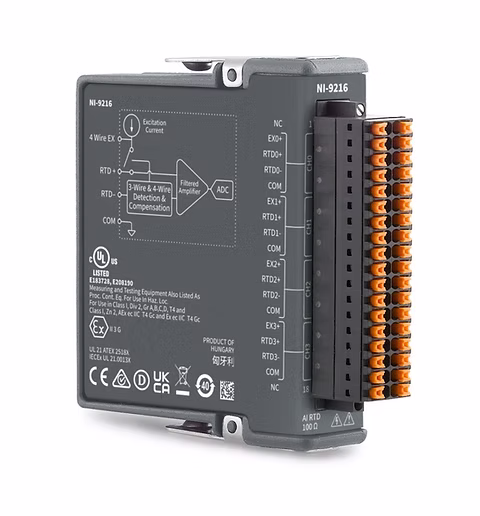

785186-01 is a NI-9216 8-channel, 400S/s aggregate, 0 ohm to 400 ohm, PT100 RTD C series temperature input module.
785186-01 is a NI‑9216 8-channel, 400S/s aggregate, 0 ohm to 400 ohm, PT100 RTD C series temperature input module. The NI‑9216 is a resistance temperature detector (RTD) input module. Users can configure the NI‑9216 for two sample rate modes: high sample rate or high resolution. The NI‑9216 is compatible with 3‑ and 4‑wire RTD measurements, and it automatically detects the type of RTD (3-‑or 4‑wire) connected to the channel and configures each channel for the appropriate mode. The module provides per channel current excitation. The NI‑9216 features calibration and includes a channel‑to‑earth ground double isolation barrier for safety, noise immunity, and a high common-mode voltage range.

Operating temperature range from -40°C to 70°C
IP40 ingress protection
Front connection, spring terminal

Notes

Do not connect the NI-9216 with DSUB to signals or use for measurements within Measurement Categories II, III, or IV.

The NI-9216 (785186-01) is a resistance temperature detector (RTD) input module. You can configure the NI-9216 for two sample rate modes: high sample rate or high resolution. The NI-9216 is compatible with 3- and 4-wire RTD measurements, and it automatically detects the type of RTD (3–or 4-wire) connected to the channel and configures each channel for the appropriate mode. The module provides per channel current excitation. The NI-9216 features calibration and includes a channel-to-earth ground double isolation barrier for safety, noise immunity, and a high common-mode voltage range.

Features
(8) Differential Analog Input Channels
400 S/s Max Sample Rate
60 or 250 Vrms Ch-Earth Ground Isolation
0.15C Measurement Accuracy
PT100 RTD Supported
D-Sub or Spring Terminal Front Connection
Part Numbers: 785186-01, 783863-01, 783863-02
Manufacturer Part Number: 785186-01
