Description

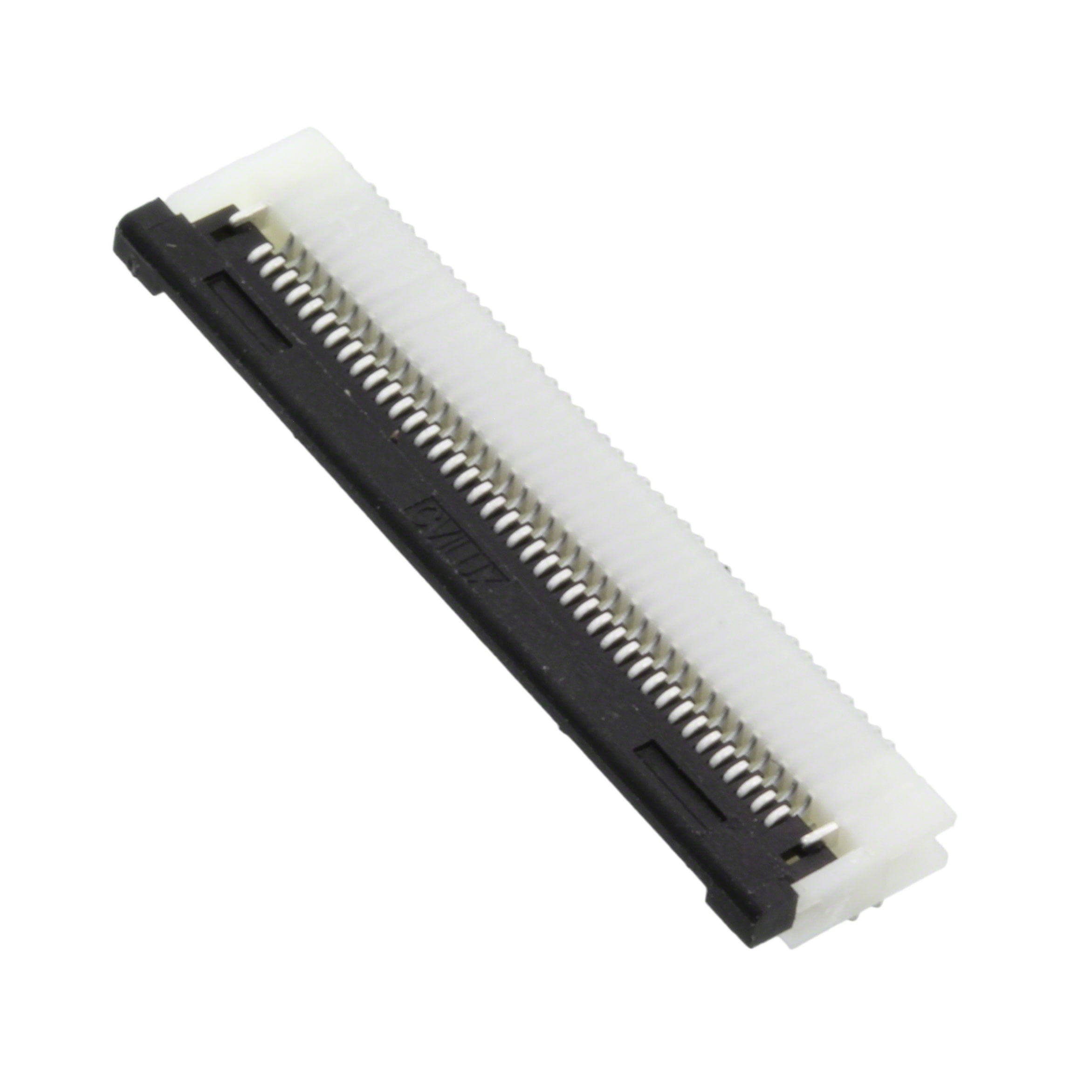

687140149022 Würth Elektronik WR-FPC FFC, FPC Connector 40 Position, 0.020″ (0.50mm) Pitch, 50V Solder Retention, Zero Insertion Force (ZIF) Surface Mount, Right Angle Solder Polyamide (PA6T), Nylon 6T
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Bottom
Number of Position: 40
Pitch: 0.020″ (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.087″ (2.20mm)
Cable End Type: Straight
Contact Material: Phosphor Bronze
Contact Finish: Tin
Operating Temperature: -40°C ~ 105°C
Housing Material: Polyamide (PA6T), Nylon 6T
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: Wurth
Manufacturer Part #: 6.8714E+11
