Description

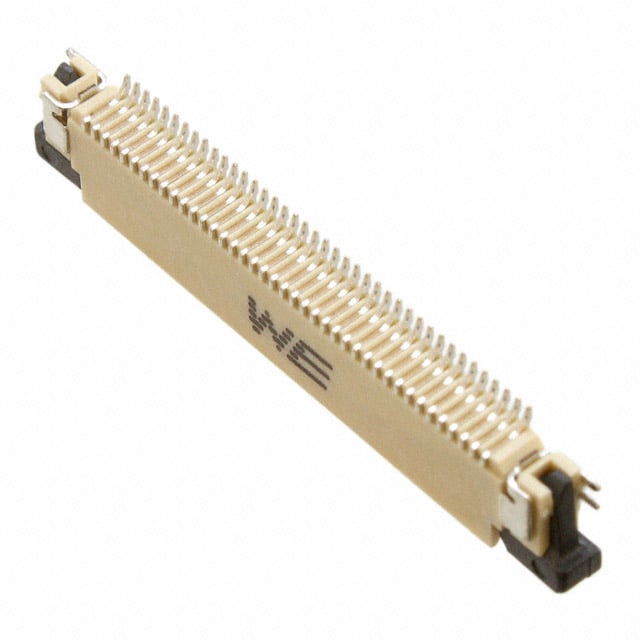

68714014022 Würth Elektronik WR-FPC FPC Connector 40 Position, 0.020″ (0.50mm) Pitch, 50V Zero Insertion Force (ZIF) Surface Mount, Right Angle Solder Liquid Crystal Polymer (LCP)
Connector Flat Flex Type: FPC
Connector Contact Type: Contacts, Top
Number of Position: 40
Pitch: 0.020″ (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.079″ (2.00mm)
Cable End Type: Tapered
Contact Material: Phosphor Bronze
Contact Finish: Tin
Operating Temperature: -25°C ~ 85°C
Housing Material: Liquid Crystal Polymer (LCP)
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: Wurth
Manufacturer Part #: 68714014022
