Description

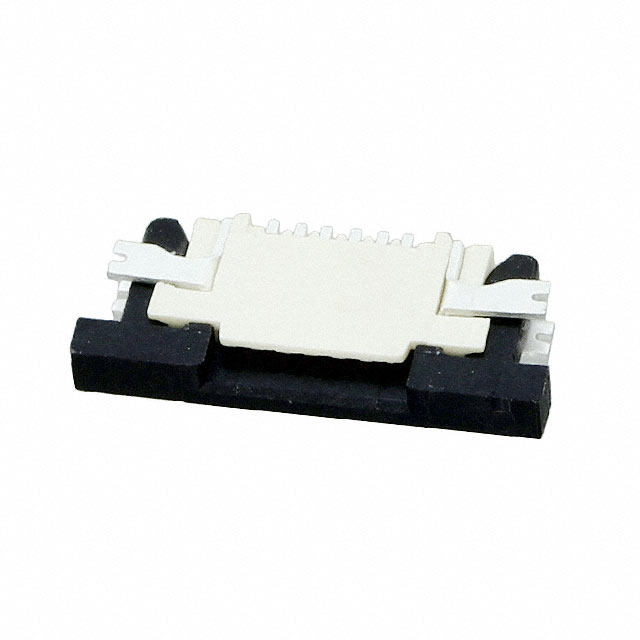

687106183622 Würth Elektronik WR-FPC FPC Connector 6 Position, 0.020″ (0.50mm) Pitch, – Solder Retention, Zero Insertion Force (ZIF) Surface Mount, Right Angle Solder Polyamide (PA6T), Nylon 6T
Connector Flat Flex Type: FPC
Connector Contact Type: Contacts, Top
Number of Position: 6
Pitch: 0.020″ (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.047″ (1.20mm)
Cable End Type: Straight
Contact Material: Phosphor Bronze
Contact Finish: Tin
Operating Temperature: -25°C ~ 85°C
Housing Material: Liquid Crystal Polymer (LCP)
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: Wurth
Manufacturer Part #: 6.87106E+11
