Description

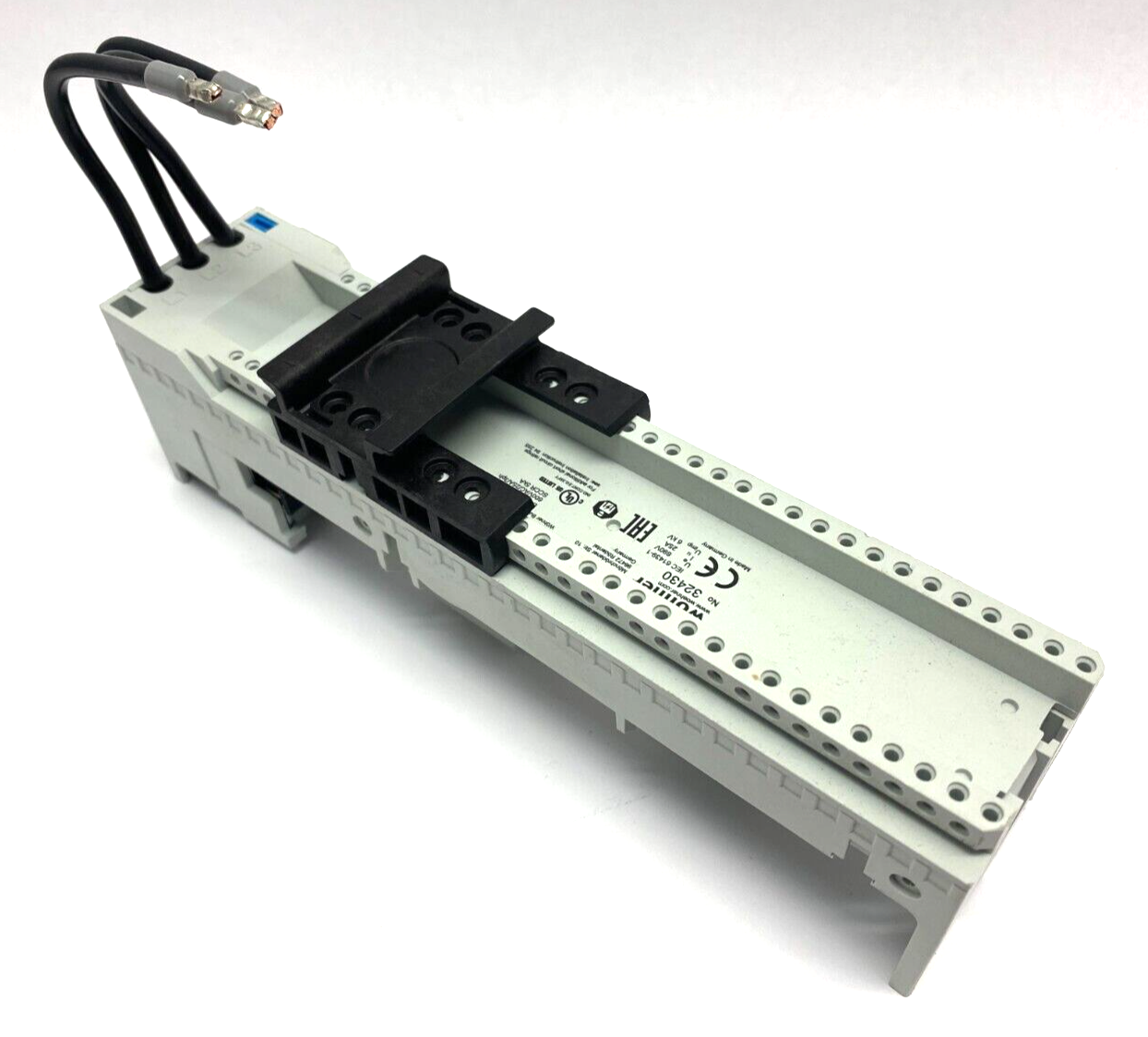

32430 000 Wohner EEC 25 A adapter, with 1 sliding DIN rail, 45 x 200, with AWG 12 (4 mm²) cables, for bars 12, 15, 20, 25, 30 x 5, 10 and profiled bars
Wohner EQUES power rail adapter, busbar copper connection standardized busbar copper, carrier rail equipment 1-carrier rail, connection round cable cores 4mm², electrical connection version 3x conduit AWG 12, adapter width 45mm, width rail 10mm, diameter connection terminal 4mm, center distance rail 60mm.
Part No.: 32430 000
EQUES 60Classic
busbar adapter 25 A
1 adjustable mounting rail
45 x 200, with leads AWG 12 (4 mm²)
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
Advantages of the product
Conductor ends ultrasonically sealed.
Click mechanism when pushing onto the busbar.
Specs
Mounting rail armament
1 mounting rail
Type of electrical connection
3 conductors AWG 12
Rated current In (A)
25
Min. busbar thickness (mm)
5
Max. busbar thickness (mm)
10
Width of the adaptor (mm)
45
Rail width (mm)
30
Busbar distance (mm)
60
Type of electric connection
Height
0.2 m
Width
0.063 m
Depth
0.045 m
Packaging
box
Weight
0.325 KG
HS code
85369095
Country of Origin
