Description

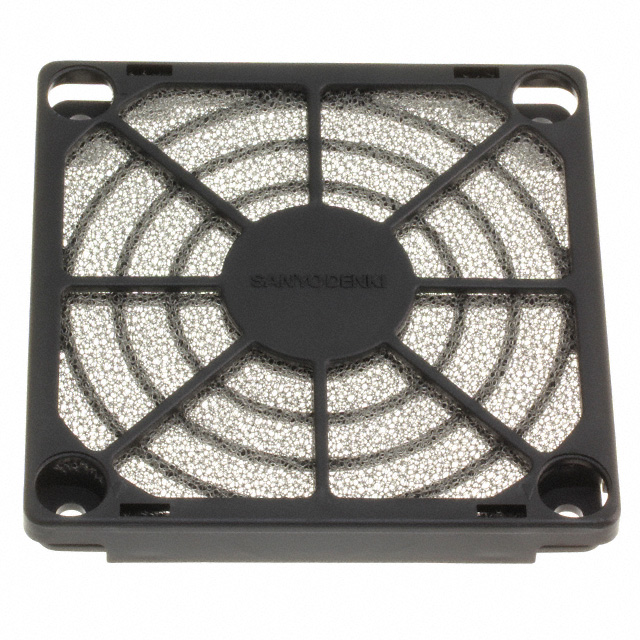

109-1002F20 Sanyo Denki Polyphenylene Ether (PPE), Polystyrene (PS) Fan Filter Guard Assembly 80mm Sq for Axial Fans
Material: Polyphenylene Ether (PPE), Polystyrene (PS)
Fan Accessory Type:
For Use with Products: Axial Fans
Model No. 109-1002F20
Frame size [mm] 80
PPI 20
Material
Panel, cover: Resin (PPE + PS); UL file No. E82268 94V-0 Filter: Polyurethane foam; UL file no. E74916 (S) 94HF-1
Operating temperature
-10 to +60˚C (non-condensing)
Mass [g]
19

Prevents dust from entering the equipment via fan.Applicable Cooling Fan(AC/DC common, external dimensions):80mmResin(SPS/PS alloy)Choose according to the angular dimensions of the cooling fan.(common to all electric fans made by SANYO ELECTRIC)
Used for filtering dust in the air that passes through the cooling fan. This is composed of a guard, filter, and cover.

[Features]
• This filter kit is composed of a guard, filter, and cover. This unit is shipped to the user completely assembled for immediate use. Insert the screws from the front cover panel opening.
• A guard can be easily attached and detached to the filter and cover. Filter maintenance can be performed easily and without needing to remove the fan.
• The range of temperatures in which this product can be used is from -10°C to + 60°C (if no condensation).
• The filter will degrade as time goes on. The rate of degradation depends on the environment in which it is used. Please be aware that the filter will degrade more easily in an area of high temperature and humidity.
• When storing for an extended period, keep the temperature between 10°C～30°C and the humidity between 20%～65% Use/storage is intended for about 2 years.
• The unit’s ability to cool will be reduced when the filter is dirty. Change about every 6 months. If the filter appears clogged or degraded upon inspection, replace it.
• Do not wash the filter with water.
• Avoid using or maintaining in a high-temperature and/or high-humidity environment, an area in direct sunlight or ultraviolet light, or an area containing corrosive gases.
• Mounting screws and nuts are not included.
